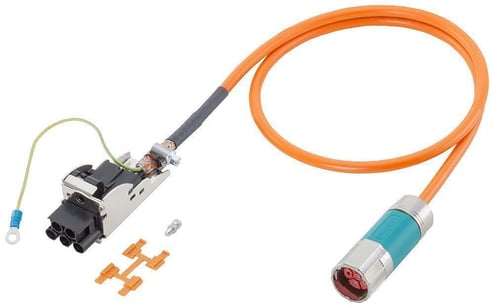

Siemens MOTION-CONNECT 800 PLUS 6FX80025CS011HA0 Pre-Assembled Basic Power Cable, 6001000 VAC, (4) 1.5 sq-mm Bare Copper Conductor, 70 m L

Siemens MOTION-CONNECT 800 PLUS Basic Power Cable, Pre-Assembled, 600/1000 VAC, 4 Conductors, Bare Copper Conductor, 1.5 sq-mm Conductor, 9.5 mm OD, 70 m Length, M23 Full Threaded Connector x SINAMICS S120 Booksize MoMo Connector End Style, CFC Insulation, PUR Jacket, Orange Jacket, -58 to 176 deg F

Power cable for connecting a SIMOTICS M-1PH8 motor with terminal box to a SINAMICS S120 motor module. The synchronous and asynchronous motors are connected to the motor modules or power modules by means of MOTION-CONNECT® power cables. The pre-assembled MOTION-CONNECT® power cables are of high quality and offer safety with problem-free functioning. Depending on the design, the MOTION-CONNECT® power cables are either pre-assembled at one end or at both ends. If pre-assembled power cables are to be installed in a cable carrier in such a way that the connector would inhibit assembly, pre-assembled cables without assembled connector can also be supplied. In this case, the contacts of the cables are crimped and the connector enclosure is supplied separately. After installing the cables, the customer assembles the connector enclosure.
