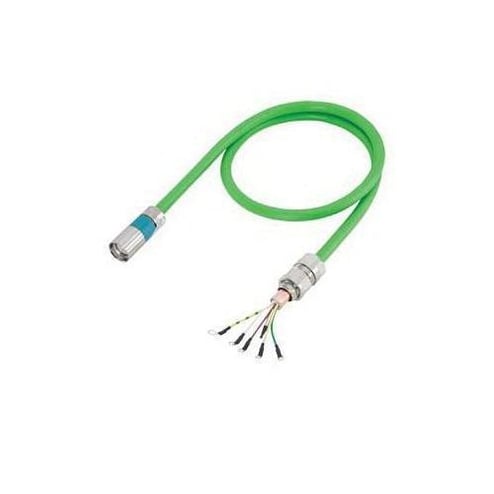

Siemens MOTION-CONNECT 800 PLUS 6FX80022SL011AD5 Pre-Assembled Basic Signal Cable With M20 Screw Coupling, 30 VAC, (7) 0.5, 1 sq-mm, 3.5 m L


Description

Siemens MOTION-CONNECT 800 PLUS Basic Signal Cable, Pre-Assembled, 30 VAC, 7 Conductors, 0.5 , 1 sq-mm Conductor, 11 mm OD, 3.5 m Length, Motor Terminal x M17 Female VG Connector End Style, CFC Insulation, PUR Jacket, Green Jacket, -58 to 176 deg F

MOTION-CONNECT® cables and connections are the ideal solution for all those who wish to use high quality, system tested power and signal cables on their machine. Our solution is characterized by lots of highly convincing features, such as an EMC compatibility test of the complete system (controller, inverter, motor and cables), vibration resistance and all relevant functions. MOTION-CONNECT® cables provides state of the art cables and connections (DRIVE-CLiQ, SPEED-CONNECT) for your motion control systems.

Features

  • Superior quality and system responsibility

Specifications

GTIN: 00804766251801

UNSPSC: 26121604

Alternative Part Number: 13816722

Country of Origin: Slovakia

Type
Pre-Assembled
Jacket Material
PUR
Insulation Material
CFC
Jacket Color
Green
Temperature Rating
-58 to 176 deg F
BABA Compliant
No
Width
16 in
Outside Diameter
11 mm
Voltage Rating
30 VAC
End Style
Motor Terminal x M17 Female VG Connector
Conductor Size
0.5 , 1 sq-mm
Length
3.5 m
Number of Conductors
7
Sold as
EACH
