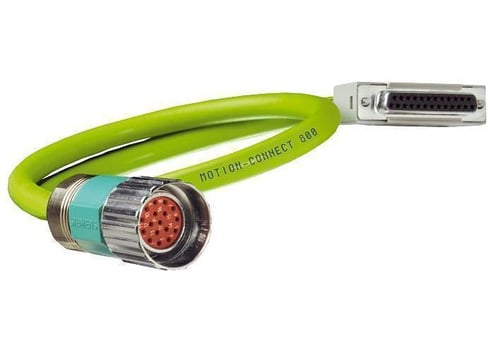

Siemens MOTION-CONNECT 500 6FX50022CA201AF0 Pre-Assembled Signal Cable, 30 VAC, (16) 0.14, 0.5, 0.22 sq-mm, 5 m L


Description

Siemens MOTION-CONNECT 500 Signal Cable, Pre-Assembled, 30 VAC, 16 Conductors, 0.14 , 0.5 , 0.22 sq-mm Conductor, 9.9 mm OD, 5 m Length, M17 Connector End Style, CFC Insulation, PVC Jacket, Green Jacket, -4 to 176 deg F

MOTION-CONNECT® cables and connections are the ideal solution for all those who wish to use high quality, system tested power and signal cables on their machine. Our solution is characterized by lots of highly convincing features, such as an EMC compatibility test of the complete system (controller, inverter, motor and cables), vibration resistance and all relevant functions. MOTION-CONNECT® cables provides state of the art cables and connections (DRIVE-CLiQ, SPEED-CONNECT) for your motion control systems.

Features

  • Superior quality and system responsibility

Specifications

GTIN: 00662643230109

UNSPSC: 26121604

Alternative Part Number: 10647326

Country of Origin: Slovakia

Type
Pre-Assembled
Outside Diameter
9.9 mm
Jacket Material
PVC
End Style
M17 Connector
Insulation Material
CFC
Voltage Rating
30 VAC
Conductor Size
0.14 , 0.5 , 0.22 sq-mm
Jacket Color
Green
Temperature Rating
-4 to 176 deg F
BABA Compliant
No
Number of Conductors
16
Length
5 m
Sold as
EACH
