Description

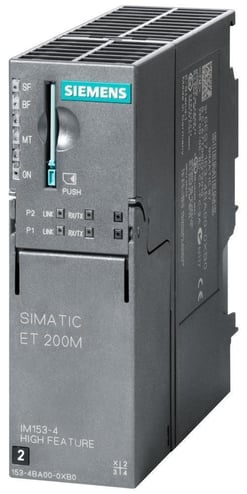

SIMATIC Communication Interface Module, High Feature, 24 VDC, 0 to 60 deg C, 125 mm H x 40 mm W x 118 mm D Dimensions
Features
- 20.4 to 28.8 VDC permissible supply voltage
- 5 ms mains/voltage failure stored energy time
- 650 mA maximum input current consumption
- 4 A inrush current
- 5 VDC output voltage
- 1.5 A output current
- 6 W power loss
- 500 VDC between functional grounding and 24 VAC supply, 1 500 VAC between Profinet and 24 VAC supply isolation
- IP20 degree of protection
- IM 153-4PN HF I/O interface module
- Maximum 12 S7-300 modules
- Supports fail safe modules
- HART modules shared device
- Medium redundancy protocol
Specifications
GTIN: 00040892584752
UNSPSC: 32151705
Alternative Part Number: 11097147
Country of Origin: Germany
| BABA Compliant | No |
|---|---|
| Voltage Rating | 24 VDC |
| Dimensions | 125 mm H x 40 mm W x 118 mm D |
| Type | High Feature |
| Temperature Rating | 0 to 60 deg C |
| Sold as | 1/PK |
