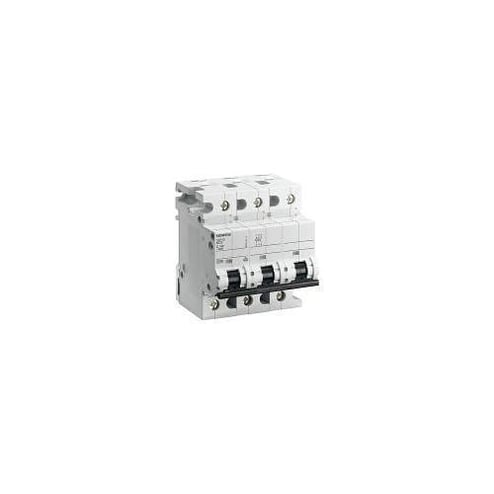

Siemens Sentron 5SP4380-8 Miniature Supplementary Protector, 400 VAC, 80 A, 10 kA Interrupt, 3 Poles, ThermalMagnetic Trip
Siemens Sentron 5SP4380-8 Miniature Supplementary Protector, 400 VAC, 80 A, 10 kA Interrupt, 3 Poles, ThermalMagnetic Trip
MPN 5SP4380-8
ASPN SIE5SP43808
UPC 754554758602
Description
Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Disconnection characteristics according to EN 60947-3 (DIN VDE 0660 Part 107)
- Main switch characteristics according to EN 60 204-1
- Can be screwed onto bases
- Separate switch position indication
- Identical wire screw on line and load side
- Type D characteristic is designed for high inrush loads
- 35 mm DIN Rail mounting
- Magnetic trip point - 10 to 20 times in rating
- Thermal trip point - 1.13 to 1.45 protector rating
Specifications
GTIN: 00754554758602
UNSPSC: 39121601
Country of Origin: Greece
| Type | Miniature |
|---|---|
| Trip Type | Thermal/Magnetic |
| Interrupt Rating | 10 kA |
| Number of Poles | 3 |
| Frequency Rating | 50 Hz |
| Voltage Rating | 400 VAC |
| Enclosure Type | IP20 |
| Dimensions | 90 mm H x 81 mm W x 70 mm D |
| Mounting Type | DIN Rail |
| Connection Type | Screw |
| Amperage Rating | 80 A |
| Temperature Rating | -25 to 45 deg C |
| Frame | C |
| BABA Compliant | No |
| Wire Size | 14 to 2 AWG |
| Sold as | EACH |
