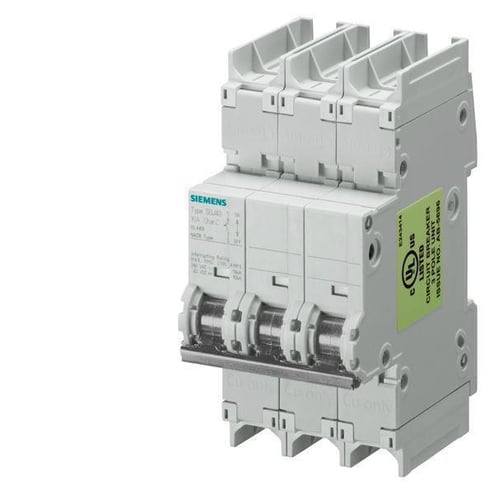

Siemens Sentron 5SJ43208HG41 Type HSJ Miniature Circuit Breaker, 240 VAC, 20 A, 14 kA Interrupt, 3 Poles, ThermalMagnetic Trip
Siemens Sentron 5SJ43208HG41 Type HSJ Miniature Circuit Breaker, 240 VAC, 20 A, 14 kA Interrupt, 3 Poles, ThermalMagnetic Trip
MPN 5SJ43208HG41
ASPN SIE5SJ43208HG41
UPC 662643168266
Description
Features
- 40 deg C calibration base (industrial applications)
- 30 deg C calibration base
- Can be used for field wiring applications, 14 to 4 AWG, copper only
- D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating
- 0.75 to 35 sq-mm solid and stranded conductors
- Visible indicator for ON and OFF/trip
- Touch protection to EN50274
- Identical wire screw connections on line and load side
- Smaller size than traditional MCCBs
- 35 mm DIN rail mounting
Specifications
GTIN: 00662643168266
UNSPSC: 39121601
Country of Origin: Germany
| Trip Type | Thermal/Magnetic |
|---|---|
| Number of Poles | 3 |
| Voltage Rating | 240 VAC |
| Actuator Type | Handle |
| Enclosure Type | IP20 |
| Connection Type | Line/Load/Screw |
| Phase | 3 |
| Amperage Rating | 20 A |
| BABA Compliant | No |
| Temperature Rating | -25 to 55 deg C |
| Mounting Type | DIN Rail |
| Dimensions | 110 mm H x 54 mm W x 70 mm D |
| Frequency Rating | 50 Hz |
| Interrupt Rating | 14 kA |
| Wire Size | 14 to 4 AWG |
| Type | Type HSJ |
| Sold as | EACH |
