Siemens

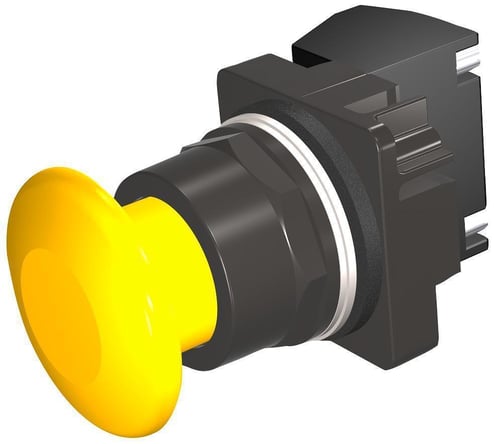

Siemens 52BM9W4E Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight Non-Illuminated Pushbutton, 30 mm, 1NC Contact, Silver Contact, 44.5 mm Mushroom Head Operator, Yellow


Description

Siemens Non-Illuminated Pushbutton, Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight, 30 mm Size, 1NC Contact Configuration, Silver Contact, Momentary Contact Mode, 44.5 mm Mushroom Head Operator, 2 Positions, Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 Enclosure, Metal/Plastic, BlackMax/Epoxy Coated, Yellow, Environmental Conditions: -31 to 158 deg F Operating, -40 to 185 deg F Storage

Siemens 30 mm NEMA pilot devices are designed to provide long, trouble-free service in the most demanding applications. Durable plastic metal operators with plastic buttons resist oils while internally, contact blocks have double break bifurcated silver contacts which improve overall performance.

Features

  • Octagonal mounting nuts
  • Heavy duty rated NEMA A600/P600 contacts
  • Positively driven contacts
  • Positive indexing selectors
  • Bifurcated movable contacts
  • Boots not required for Type 4
  • Touchsafe terminals

Specifications

GTIN: 00887621577476

UNSPSC: 39122216

Country of Origin: Mexico

Terminal Type
Screw
Color
Yellow
Size
30 mm
Contact Mode
Momentary
Width
13 in
Number of Positions
2
Operator Type
44.5 mm Mushroom Head
Material
Metal/Plastic
Contact Configuration
1NC
Contact Type
Silver
BABA Compliant
No
Finish
BlackMax/Epoxy Coated
Environmental Conditions
-31 to 158 deg F Operating, -40 to 185 deg F Storage
Enclosure Type
NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66
Type
Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight
Sold as
EACH
