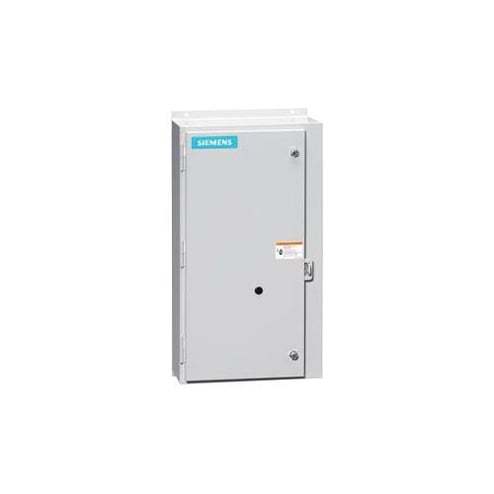

Siemens 43IP320H 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing NEMA Contactor, 380 to 440 VAC, 440 to 480 VAC Coil, 115 A, 3NO Contact, 3 Poles
Siemens 43IP320H 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing NEMA Contactor, 380 to 440 VAC, 440 to 480 VAC Coil, 115 A, 3NO Contact, 3 Poles
MPN 43IP320H
ASPN SIE43IP320H
UPC 40892941463
Description
Features
- Half size controller
- 380 to 440 VAC at 50 Hz, 440 to 480 VAC at 60 Hz coil voltage
Specifications
GTIN: 00040892941463
UNSPSC: 39121529
Alternative Part Number: 11757874
| Coil Power Rating | 14 W |
|---|---|
| Coil Voltage | 380 to 440 VAC, 440 to 480 VAC |
| Contact Configuration | 3NO |
| Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Dimensions | 25 in H x 17 in W x 7 in D |
| Enclosure Type | NEMA 3/3R/4/12 |
| Frequency Rating | 50/60 Hz |
| Maximum Load Current | 115 A |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 2NO-2NC |
| Number of Poles | 3 |
| Operating Cycles | 5000000 |
| Operating Temperature | -4 to 104 deg F |
| Size | S3-1/2 |
| Terminal Type | Box Lug/Screw |
| Type | 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing |
| Wattage | 310 VA Pickup, 26 VA Holding |
| Sold as | EACH |
