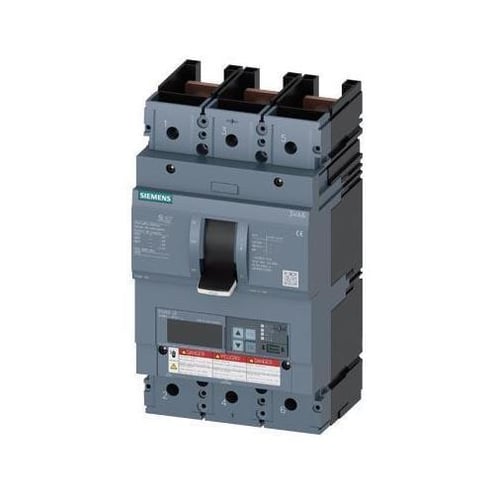

Siemens 3VA6325-7JP31-0AA0 3VA6 Molded Case Circuit Breaker, 480 VAC, 400 A, 100 kA Interrupt, 3 Poles, Electronic Trip


Description

Siemens Molded Case Circuit Breaker, Series, 480, Amperage Rating VAC, A 400, Frequency Rating, Hz 50/60, 100 Interrupt, Frame kA, Electronic Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Fixed Mount, Temperature Rating, deg C -25 to 70, 9.76 in H x 5.43 in W x 5.41 in D, Material, Finish

Features

  • The new 3VA6 molded case circuit breakers reliably perform all the tasks required for circuit protection and protection of starter combinations
  • Compact dimensions
  • Modular and easy to fit internal accessories with diverse functions
  • Increased breaking capacity
  • Integrated metering function
  • Connection to a communication system
  • Retrofittable communication for ETU 5-series and 8-series
  • Plug-in technology, draw-out technology

Specifications

GTIN: 00804766313981

UNSPSC: 39121601

Country of Origin: Czechia

Interrupt Rating
100 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
480 VAC
Enclosure Type
IP40
Dimensions
9.76 in H x 5.43 in W x 5.41 in D
Mounting Type
Fixed
Temperature Rating
-25 to 70 deg C
BABA Compliant
No
Series
3VA6
Trip Type
Electronic
Amperage Rating
400 A
Sold as
EACH
