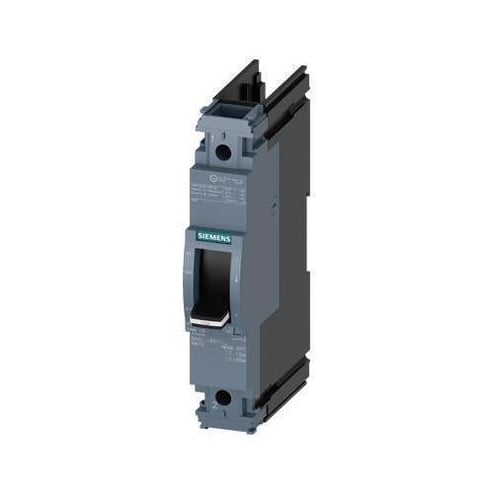

Siemens 3VA5190-6ED11-1AA0 Molded Case Circuit Breaker, 480600 VAC, 125 A, 50 kA Interrupt, 1 Poles, ThermalMagnetic Trip
Siemens 3VA5190-6ED11-1AA0 Molded Case Circuit Breaker, 480600 VAC, 125 A, 50 kA Interrupt, 1 Poles, ThermalMagnetic Trip
MPN 3VA5190-6ED11-1AA0
ASPN SIE3VA5190-6ED11-1AA0
UPC 804766301469
Description
Features
- The new 3VA5 molded case circuit breakers reliably perform all the tasks required for circuit protection
- Compact design
- Modular and easy to fit internal accessories with diverse functions
- When it comes to operation, functionality and installation, the new 3VA UL series of molded case circuit breakers is a fully integrated system
- Without connection
Specifications
GTIN: 00804766301469
UNSPSC: 39121601
Alternative Part Number: 13856838
Country of Origin: Czechia
| Frequency Rating | 50/60 Hz |
|---|---|
| Enclosure Type | IP40 |
| Mounting Type | Fixed |
| Amperage Rating | 125 A |
| BABA Compliant | No |
| Temperature Rating | -25 deg C |
| Series | 3VA5 |
| Interrupt Rating | 50 kA |
| Dimensions | 5.51 in H x1 in W x 3.68 in D |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 480/600 VAC |
| Number of Poles | 1 |
| Sold as | EACH |
