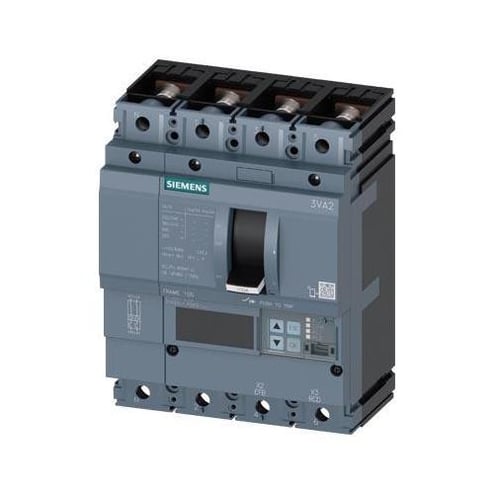

Siemens Sentron™ 3VA2040-5KQ42-0AA0 Low Voltage Molded Case Circuit Breaker With LCD Display and Metering Function, 690 VAC, 40 A, 2 kA at 690 V, 55 kA at 415 VAC Interrupt, 4 Poles, ETU860 Electronic
Siemens Sentron™ 3VA2040-5KQ42-0AA0 Low Voltage Molded Case Circuit Breaker With LCD Display and Metering Function, 690 VAC, 40 A, 2 kA at 690 V, 55 kA at 415 VAC Interrupt, 4 Poles, ETU860 Electronic
MPN 3VA2040-5KQ42-0AA0
ASPN SIE3VA2040-5KQ42-0AA0
UPC 804766442575
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, Profibus, Profinet protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager - technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766442575
UNSPSC: 39121601
Alternative Part Number: 14861742
| Type | Low Voltage |
|---|---|
| Trip Type | ETU860 Electronic |
| Interrupt Rating | 2 kA at 690 V, 55 kA at 415 VAC |
| Number of Poles | 4 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 VAC |
| Enclosure Type | IP40 |
| Mounting Type | Fixed |
| Connection Type | Lug Terminal/Nut Keeper |
| Amperage Rating | 40 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA20 IEC 100 A |
| BABA Compliant | No |
| Dimensions | 5.5 in W x 4.2 in D x 7.1 in H |
| Sold as | EACH |
