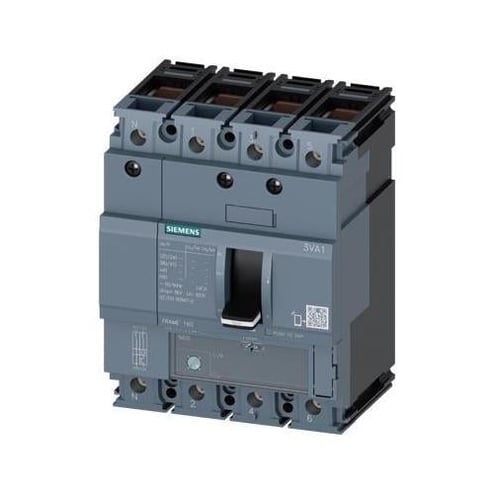

Siemens Sentron™ 3VA1120-6EE46-0AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC600 VDC, 20 A, 10 kA at 690 V, 70 kA at 415 VAC Interrupt, 4 Poles, TM220 Thermal Magnetic Trip Unit
Siemens Sentron™ 3VA1120-6EE46-0AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC600 VDC, 20 A, 10 kA at 690 V, 70 kA at 415 VAC Interrupt, 4 Poles, TM220 Thermal Magnetic Trip Unit
MPN 3VA1120-6EE46-0AA0
ASPN SIE3VA1120-6EE46-0AA0
UPC 804766426957
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, Profibus, Profinet protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager - technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00804766426957
UNSPSC: 39121601
Country of Origin: Czechia
| Frequency Rating | 50/60 Hz |
|---|---|
| Temperature Rating | -25 to 70 deg C |
| BABA Compliant | No |
| Number of Poles | 4 |
| Type | Low Voltage |
| Frame | 3VA11 IEC 160 A |
| Trip Type | TM220 Thermal Magnetic Trip Unit |
| Interrupt Rating | 10 kA at 690 V, 70 kA at 415 VAC |
| Enclosure Type | IP40 |
| Dimensions | 4 in W x 3.5 in D x 5.1 in H |
| Mounting Type | Fixed |
| Connection Type | Box Terminal/Steel Wrap Around Lug |
| Amperage Rating | 20 A |
| Voltage Rating | 690 VAC/600 VDC |
| Sold as | EACH |
