Description

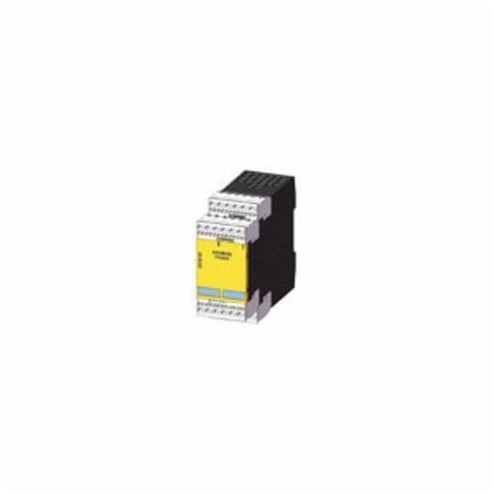

SIRIUS Mechanical Safety Relay, 50/60 Hz Frequency, 24 VDC Coil, 2NO-1NC Contact Form, 5 A at 115/230 VAC, 0.1/5 A at 24/230 VDC Contact, Snap-On Mounting, Screw Terminal, IP20 Enclosure, -25 to 60 deg C, 138.5 mm H x 44.8 mm W x 120 mm D Dimensions
SIRIUS safety relays are the key elements of a consistent and cost-effective safety chain. Be it EMERGENCY-STOP disconnection, protective door monitoring or the protection of presses or punches - with SIRIUS safety relays every safety application can be implemented to optimum effect in terms of engineering and price.
Features
- Compact, service-proven SIRIUS design creates more space in the control cabinet
- Flexible connectability and expendability make subsequent changes easy
- Removable terminals for greater plant availability
- Yellow front plate clearly identifies the device as an item of safety technology
- Sensor cable up to 2000 m long enables use in large-scale plants
- This product is suitable for Class A environments only. It can cause undesired radio-frequency interference in residential environments
- If this is the case, the user must take appropriate measures
- 5 A at 115/230 VAC AC-15, 5 A/0.1 A at 24/230 VDC DC-13
Specifications
GTIN: 00754554653679
UNSPSC: 39122205
Alternative Part Number: 7518012
Country of Origin: Germany
| Terminal Type | Screw |
|---|---|
| Frequency Rating | 50/60 Hz |
| Enclosure Type | IP20 |
| Mounting Type | Snap-On |
| BABA Compliant | No |
| Contact Rating | 5 A at 115/230 VAC, 0.1/5 A at 24/230 VDC |
| Temperature Rating | -25 to 60 deg C |
| Contact Form | 2NO-1NC |
| Coil Voltage | 24 VDC |
| Dimensions | 138.5 mm H x 44.8 mm W x 120 mm D |
| Sold as | EACH |
