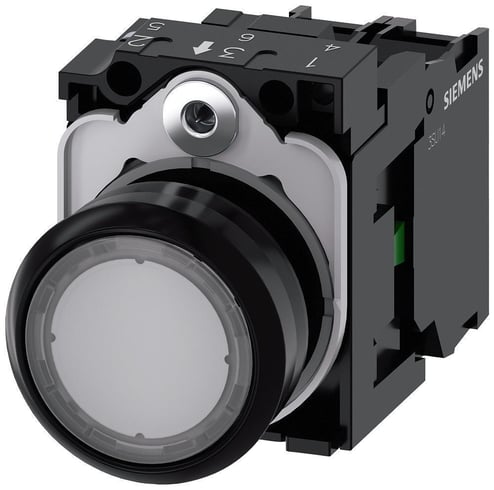

Siemens SIRIUS ACT 3SU11030AB701BA0 Complete Round Illuminated Pushbutton With Holder and 110 VAC Integrated LED Module, 22 mm, 1NO Contact, Silver Alloy Contact, Flat Button Operator, BlackClear


Description

Siemens SIRIUS ACT Illuminated Pushbutton, Complete Round, Series: 3SU11, 22 mm, 1NO, Silver Alloy Contact, Momentary Contact Mode, Flat Button Operator, LED Lamp, Bezel/Housing: Plastic, Solder Pin, Screw Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K, Front Plate/Panel Mount, Plastic, Black/Clear, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. It can be flexibly configured to specific customer requirements and features extensive accessories. For common applications, complete devices are offered.

Features

  • Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
  • High media resistance, for example, to oils, aggressive vapors and caustic solutions
  • Easy to operate, thanks to improved haptic properties and illumination
  • Fast, single handed installation thanks to retentive actuator function
  • Twist prevention integrated into patented holder design
  • Alignment arrows and distinct module slots for reliable connection
  • No special tools required, simple size 2 screwdriver
  • Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Stackable contact modules
  • Components can be mounted with holder removed
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes

Specifications

GTIN: 00804766070853

UNSPSC: 39122216

Country of Origin: Germany

Terminal Type
Screw
Contact Mode
Momentary
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Lamp Type
LED
Material
Plastic
Environmental Conditions
-25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Bezel/Housing
Plastic
BABA Compliant
No
Contact Type
Silver Alloy
Color
Black/Clear
Type
Complete Round
Connection Type
Solder Pin
Width
0
Contact Configuration
1NO
Series
3SU11
Mounting Type
Front Plate/Panel
Operator Type
Flat Button
Size
22 mm
Sold as
EACH
