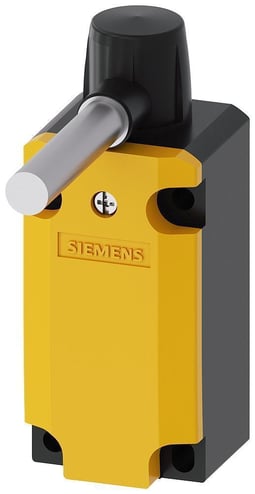

Siemens 3SE51320LU22 Mechanical Position Limit Switch, 24125240400 VAC, 24125250400 VDC, 0.120.270.55346 A, Rotary Actuator, 1NO-2NC Contact
Siemens 3SE51320LU22 Mechanical Position Limit Switch, 24125240400 VAC, 24125250400 VDC, 0.120.270.55346 A, Rotary Actuator, 1NO-2NC Contact
MPN 3SE51320LU22
ASPN SIE3SE51320LU22
UPC 804766007101
Description
Features
- 6 A at 24/125/240 VAC, 4 A at 400 VAC, 3 A at 24 VDC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.12 A at 400 VDC
- 1000000 switching cycle mechanical service life, 100000 switching cycle electrical endurance
Specifications
GTIN: 00804766007101
UNSPSC: 39121521
Country of Origin: Germany
| Operating Temperature | -25 to 85 deg C |
|---|---|
| Frequency Rating | 50/60 Hz |
| Width | 8.5 in |
| Enclosure Type | IP66/IP67 |
| Mounting Type | Threaded |
| Series | 3SE5 |
| Connection Type | Screw |
| Action | Snap |
| Material | Plastic |
| Environmental Conditions | -40 to 90 deg C Storage Temperature |
| Operating Cycles | 100000/1000000 Cycles |
| BABA Compliant | No |
| Contact Configuration | 1NO-2NC |
| Amperage Rating | 0.12/0.27/0.55/3/4/6 A |
| Actuator | Rotary |
| Size | 40.5 mm W x 37.8 mm D |
| Voltage Rating | 24 to 125 to 240 to 400 VAC/24 to 125 to 250 to 400 VDC |
| Type | Mechanical Position |
| Sold as | EACH |
