Description

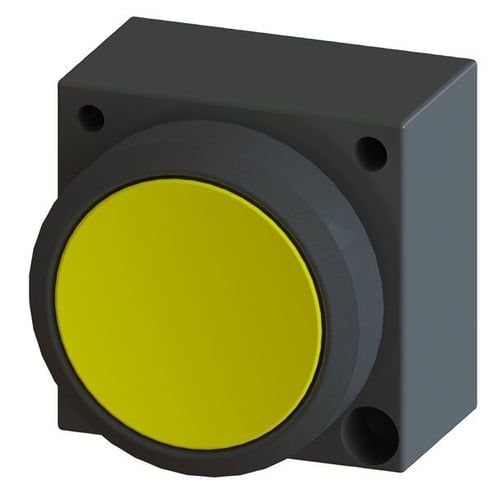

Siemens Non-Illuminated Pushbutton Operator, Series: 3SB, 22 mm Size, Momentary Contact Mode, 2 Positions, Round Flush Button Operator, NEMA 1/3/4X/12/IP66 Enclosure, Threaded Terminal, Surface Mounting, Bezel/Housing: Plastic, -25 to 70 deg C, Plastic, Yellow
The 3SB3 series is a modular range of commanding and signaling devices for front panel mounting and rear conductor connection. As an alternative, individual elements can also be supplied for use on printed circuit boards. Complete units are offered for the most commonly used applications.
Features
- The devices are climateproof
- Modular design, high degree of protection, communications capable, easy and quick installation and customization
- 22 mm Dia x 8 mm H mounting
- 28.5 mm W x 29 mm D installation
- 10000000 operating cycles
- Standard front ring
- Flat button
- Plastic actuating, front ring and holder
Specifications
GTIN: 00754554404585
UNSPSC: 39122216
Country of Origin: Germany
| Color | Yellow |
|---|---|
| Size | 22 mm |
| Contact Mode | Momentary |
| Number of Positions | 2 |
| Mounting Type | Surface |
| Material | Plastic |
| Temperature Rating | -25 to 70 deg C |
| BABA Compliant | No |
| Series | 3SB |
| Operator Type | Round Flush Button |
| Enclosure Type | NEMA 1/3/4X/12/IP66 |
| Terminal Type | Threaded |
| Bezel/Housing | Plastic |
| Sold as | EACH |
