Description

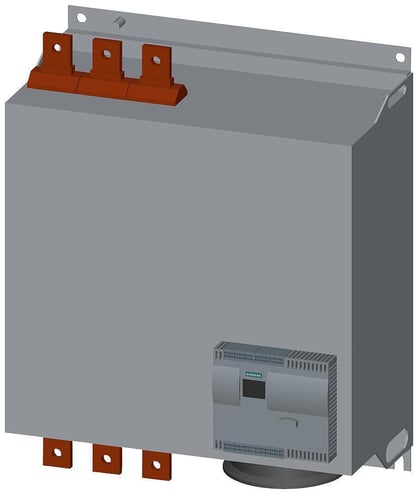

Siemens SIRIUS Soft Starter, High End Version 4, Series: 3RW44, 200 to 460 VAC, 489/551/615 A, 50 to 60 Hz, 200/355/630 kW, 150 hp, 200 hp, 350 hp, 400 hp, 450 hp, 850 hp Motor, 230 VAC Coil, 3 Pole, External Reset, 3 Phase, Busbar/Spring Loaded Terminal, B300/R300 Auxiliary, Electronics Control, IP00, 0 to 60 deg C Operating, 25.2 in H x 20 in W x 290 mm D
The SIRIUS 3RW44 high performance soft starters are suitable for the torque controlled soft starting and stopping as well as braking of 3-phase asynchronous motors. In addition to soft starting and stopping, the SIRIUS 3RW44 soft starters provide numerous functions for higher level requirements. Soft starters are available in a performance range up to 710 kW (at 400 VAC) in the inline circuit and up to one 200 kW (at 400 VAC) in the inside delta circuit. Combinations of various starting, operating and stopping possibilities ensure optimum adaptation to the application-specific requirements.
Features
- Optimum adaptation to the requirements of the application
- Simple and fast commissioning and maintenance
- Efficient configuration and maximum flexibility in automation engineering
- Reduction of power loss during operation
- More accurate setting of the parameters as well as control and monitoring
- Fast integration into higher level controls
- 150/350 hp at 200 VAC, 200/400 hp at 230 VAC, 450/850 hp at 460 VAC motor power
Specifications
GTIN: 00754554931876
UNSPSC: 39121521
Alternative Part Number: 9384749
| Control Type | Electronics |
|---|---|
| Number of Poles | 3 |
| Auxiliary Contact Rating | B300/R300 |
| Frequency Rating | 50 to 60 Hz |
| Enclosure Type | IP00 |
| Dimensions | 25.2 in H x 20 in W x 290 mm D |
| Coil Voltage | 230 VAC |
| Connection Type | Busbar/Spring Loaded Terminal |
| Phase | 3 |
| Reset Type | External |
| BABA Compliant | No |
| Amperage Rating | 489/551/615 A |
| Series | 3RW44 |
| Motor Power | 150 hp, 200 hp, 350 hp, 400 hp, 450 hp, 850 hp |
| Voltage Rating | 200 to 460 VAC |
| Wattage | 200/355/630 kW |
| Operating Temperature | 0 to 60 deg C |
| Type | High End Version 4 |
| Sold as | EACH |
