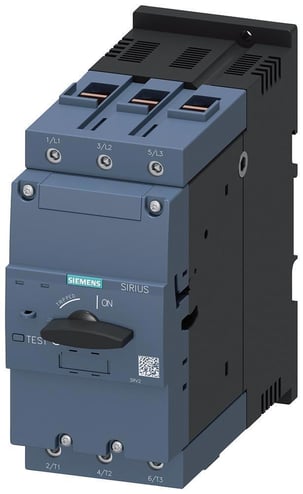

Siemens SIRIUS 3RV23414RC10 Circuit Breaker, 690 VAC, 84 A, 100 kA at 240 VAC, 65 kA at 400 VAC, 8 kA at 500 VAC, 5 kA at 690 VAC Interrupt, 3 Poles
Siemens SIRIUS 3RV23414RC10 Circuit Breaker, 690 VAC, 84 A, 100 kA at 240 VAC, 65 kA at 400 VAC, 8 kA at 500 VAC, 5 kA at 690 VAC Interrupt, 3 Poles
MPN 3RV23414RC10
ASPN SIE3RV23414RC10
UPC 804766924163
Description
Specifications
GTIN: 00804766924163
UNSPSC: 39121601
Country of Origin: Germany
| Number of Poles | 3 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 VAC |
| Actuator Type | Handle |
| Enclosure Type | IP00/IP20 |
| Dimensions | 70 mm W x 176 mm D x 165 mm H |
| Temperature Rating | -20 to 60 deg C |
| BABA Compliant | No |
| Power Rating | 75 kW at 690 VAC |
| Amperage Rating | 84 A |
| Connection Type | Top and Bottom Screw Terminal |
| Series | 3RV2 |
| Trip Range | 1170 A |
| Mounting Type | Threaded/Snap-On |
| Interrupt Rating | 100 kA at 240 VAC, 65 kA at 400 VAC, 8 kA at 500 VAC, 5 kA at 690 VAC |
| Sold as | EACH |
