Description

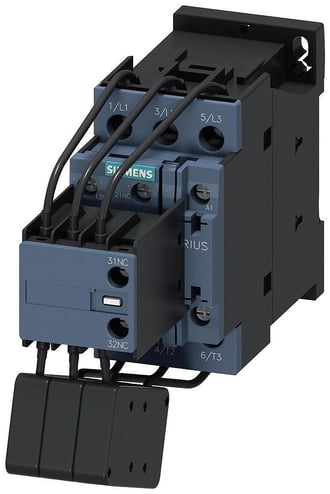

Siemens SIRIUS Capacitor Contactor, Series: 3RT26, 24 VAC Coil, 29 A Maximum Load Current, 20 kVAR at 400 V Coil Power Rating, 3 Poles, 50 Hz, 77 VA Pickup, 9.8 VA Holding, 3NO, 1NO-2NC Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.25/0.82, S0, Screw Terminal, IP20, 3000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 135 mm H x 45 mm W x 155 mm D
Specifications
GTIN: 00804766160318
UNSPSC: 39121529
Alternative Part Number: 13428148
Country of Origin: Germany
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Terminal Type | Screw |
| Number of Poles | 3 |
| Frequency Rating | 50 Hz |
| Coil Power Rating | 20 kVAR at 400 V |
| Size | S0 |
| Enclosure Type | IP20 |
| Coil Voltage | 24 VAC |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Power Factor | 0.25/0.82 |
| BABA Compliant | No |
| Operating Cycles | 3000000 |
| Series | 3RT26 |
| Dimensions | 135 mm H x 45 mm W x 155 mm D |
| Wattage | 77 VA Pickup, 9.8 VA Holding |
| Maximum Load Current | 29 A |
| Number of Auxiliary Contacts | 1NO-2NC |
| Sold as | EACH |
