Description

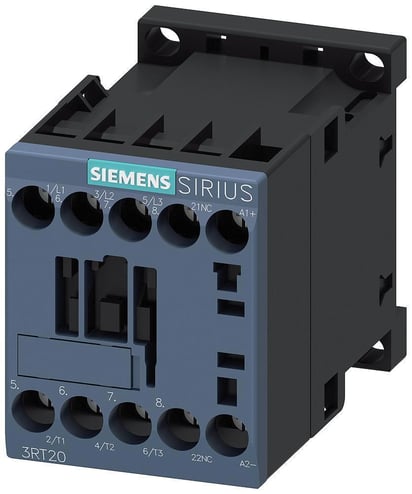

Siemens Power Coupling Contactor, Series: 3RT20, 24 VDC Coil, 7 A Maximum Load Current, 1.6 W Closing/Holding Coil Power Rating, 3 Pole, 3 kW, 1NC, S00, Screw Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mount, 45 mm W x 73 mm D x 58 mm H
The 3RT20 coupling contactors for switching motors are tailored to the special requirements of working with electronic controls. The 3RT201 coupling contactors cannot be expanded with auxiliary switch blocks. Coupling contactors have a low power consumption and an extended solenoid coil operating range. Depending on the version, the solenoid coils are supplied either without overvoltage damping or with a diode, suppressor diode or varistor connected as standard.
Specifications
GTIN: 00662643909203
UNSPSC: 39121529
Alternative Part Number: 11031547
Country of Origin: Germany
| BABA Compliant | No |
|---|---|
| Maximum Load Current | 7 A |
| Wattage | 3 kW |
| Enclosure Type | IP20 |
| Operating Cycles | 30000000 Cycles |
| Series | 3RT20 |
| Terminal Type | Screw |
| Number of Poles | 3 |
| Size | S00 |
| Dimensions | 45 mm W x 73 mm D x 58 mm H |
| Mounting Type | Surface/Threaded/DIN Rail/Snap-On |
| Contact Configuration | 1NC |
| Operating Temperature | -25 to 60 deg C |
| Coil Voltage | 24 VDC |
| Coil Power Rating | 1.6 W Closing/Holding |
| Sold as | EACH |
