Description

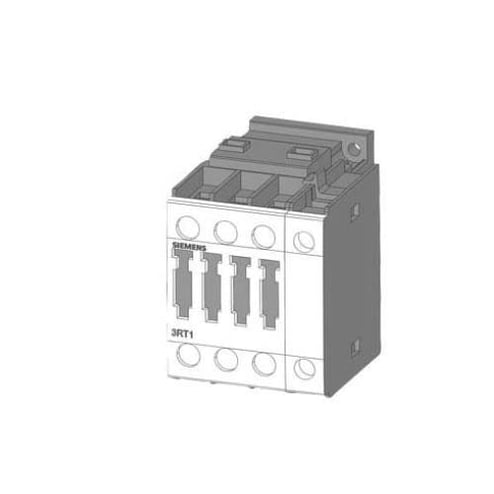

SIRIUS Power Contactor, 110 VAC Coil, 25 A Maximum Load Current, 64 VA Pickup, 8.4 VA Holding Coil, 4 Pole, 50/60 Hz Frequency, 11 kW Wattage, 2NO-2NC Contact Configuration, Power Factor: 0.72 Closing, 0.24 Holding, Size S0 Size, Screw Terminal, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 85 mm H x 61 mm W x 91 mm D Dimensions
Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
Specifications
UNSPSC: 39121529
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Terminal Type | Screw |
| Number of Poles | 4 |
| Wattage | 11 kW |
| Frequency Rating | 50/60 Hz |
| Coil Power Rating | 64 VA Pickup, 8.4 VA Holding |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Contact Configuration | 2NO-2NC |
| Power Factor | 0.72 Closing, 0.24 Holding |
| Operating Cycles | 10000000 Cycles |
| BABA Compliant | No |
| Coil Voltage | 110 VAC |
| Dimensions | 85 mm H x 61 mm W x 91 mm D |
| Enclosure Type | IP00/IP20 |
| Size | Size S0 |
| Maximum Load Current | 25 A |
| Sold as |
