Description

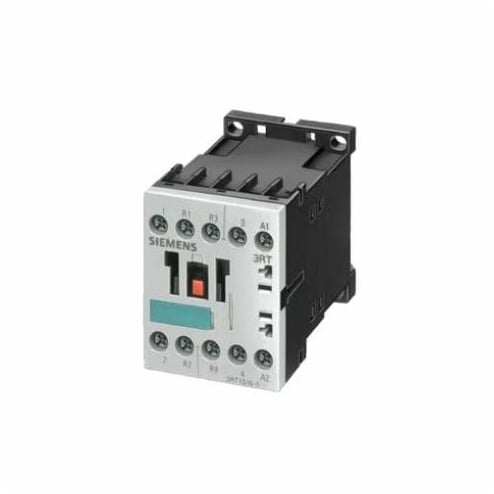

SIRIUS IEC Contactor, 120 VAC Coil, 31.7 VA Pickup, 5.1 VA Holding Coil, 4 Pole, 50/60 Hz Frequency, 4 kW Wattage, 2NO-2NC Contact Configuration, Power Factor: 0.77 Closing, 0.27 Holding, SZ S00 Size, Screw Terminal, IP20 Enclosure, 30000000 Cycles Contactor/Typical Operating Cycles, -25 to 60 deg C Operating, DIN Rail Mounting, 57-1/2 mm H x 45 mm W x 72 mm D Dimensions
Features
- Without auxiliaries, suppression lug
- 30000000 of the contactor/typical, 10000000 of the contactor with added auxiliary switch block/typical, 5000000 of the Contactor With Added Electronics Compatible Auxiliary Switch Block/Typical
Specifications
UNSPSC: 39121529
Country of Origin: Germany
| Mounting Type | DIN Rail |
|---|---|
| BABA Compliant | No |
| Size | SZ S00 |
| Coil Voltage | 120 VAC |
| Operating Cycles | 30000000 Cycles Contactor/Typical |
| Contact Configuration | 2NO-2NC |
| Enclosure Type | IP20 |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 4 |
| Terminal Type | Screw |
| Operating Temperature | -25 to 60 deg C |
| Wattage | 4 kW |
| Coil Power Rating | 31.7 VA Pickup, 5.1 VA Holding |
| Dimensions | 57-1/2 mm H x 45 mm W x 72 mm D |
| Power Factor | 0.77 Closing, 0.27 Holding |
| Sold as |
