Description

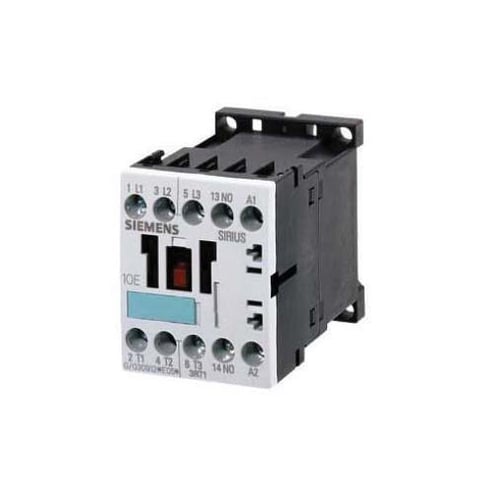

SIRIUS 3RT1016-1BP42 Power Contactor, 230 VDC V Coil, 9 A, 3NO-0NC Contact, 3 Poles
Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
Specifications
UNSPSC: 39121529
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Terminal Type | Screw |
| Number of Poles | 3 |
| Size | Size S00 |
| Enclosure Type | IP20 |
| Coil Voltage | 230 VDC |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Contact Configuration | 3NO-0NC |
| Operating Cycles | 30000000 Cycles |
| Number of Auxiliary Contacts | 1NC |
| BABA Compliant | No |
| Dimensions | 57-1/2mm H x 45mm W x 72 mm D |
| Coil Power Rating | 3.3 W Closing/Holding |
| Wattage | 4 kW |
| Maximum Load Current | 9 A |
