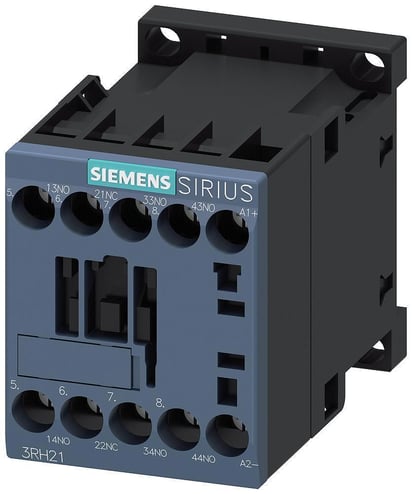

Siemens 3RH21311BW40 DC Operated Contactor Relay With Permanently Mounted Auxiliary Contact Block, 3NO-1NC Contact, 48 VDC V Coil


Description

Siemens Contactor Relay, DC Operated, 48 VDC Coil, 3NO-1NC, 4 and 8 Pole, Snap-On Mount, Screw Terminal, IP20 Enclosure, -25 to 60 deg C, 45 mm W x 73 mm D x 57.5 mm H

Safety rated control relays are required to have positively driven contact elements according to IEC 60947-5-1 Annex L. Positively driven contact elements are a combination of NO auxiliary contacts and NC auxiliary contacts whose construction prevents them from being closed simultaneously. In some industries, such as automotive, the auxiliary contact blocks are required to be permanently attached to meet the requirements of "unintentional misuse" as specified in IEC 60292, paragraph 3.12. Tested by SUVA.

Features

  • Size S00 contact

Specifications

GTIN: 00662643906332

UNSPSC: 39121521

Country of Origin: Germany

Terminal Type
Screw
Enclosure Type
IP20
Temperature Rating
-25 to 60 deg C
BABA Compliant
No
Mounting Type
Snap-On
Coil Voltage
48 VDC
Type
DC Operated
Number of Poles
4 and 8
Width
6.4 in
Dimensions
45 mm W x 73 mm D x 57.5 mm H
Contact Form
3NO-1NC
Sold as
EACH
