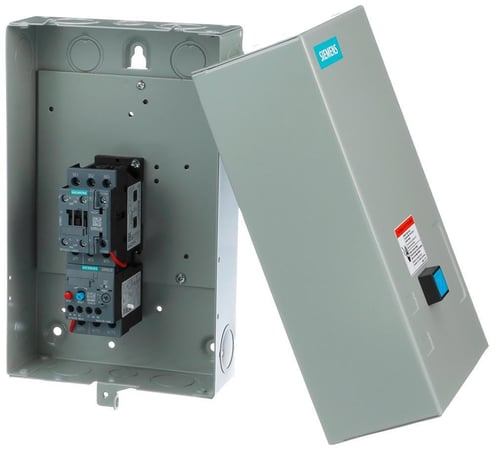

Siemens 3RE41228BA311HH3 Full Voltage Non-Combination Motor Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure


Description

Siemens Motor Starter, Full Voltage Non-Combination, 600 VAC, 60 Hz Frequency, 25 hp Motor, 110 VAC at 50 Hz, 120 VAC at 60 Hz Coil, 3 Pole, Setting: 5.5 to 8 A, 8 to 40 ms On/4 to 16 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Screw Terminal Connection, Non-Reversing Action, Bi-Metal Overload Relay, 10 A at 600 VAC, 2.5 A at 600 VDC Auxiliary, HAND/OFF/AUTO Selector Switch Control, NEMA 1 Enclosure, 30000000 cycles Operating Cycles, -4 to 104 deg F Operating, 8 in W x 7 in D x 14 in H Dimensions

3RE4 Enclosed IEC motor controllers are well suited for both industrial and commercial applications. They are durable and dependable, particularly when it comes to motor protection. Protecting the performance of motors is a critical priority and the 3RE4 enclosed starters are offered with either thermal or solid-state overload relays to maximize your motor protection.

Specifications

GTIN: 00804766771941

UNSPSC: 39121521

Alternative Part Number: 14828871

Action
Non-Reversing
Auxiliary Contact Rating
10 A at 600 VAC, 2.5 A at 600 VDC
Coil Voltage
110 VAC at 50 Hz, 120 VAC at 60 Hz
Connection Type
Screw Terminal
Control Type
HAND/OFF/AUTO Selector Switch
Dimensions
8 in W x 7 in D x 14 in H
Enclosure Type
NEMA 1
Frequency Rating
60 Hz
Motor Power
25 hp
Number of Poles
3
Operating Temperature
-4 to 104 deg F
Overload Relay
Bi-Metal
Phase
3 ph
Reset Type
Automatic/Manual/Remote
Setting
5.5 to 8 A
Timing
8 to 40 ms On/4 to 16 ms Off
Type
Full Voltage Non-Combination
Voltage Rating
600 VAC
Operating Cycles
30000000 cycles
Width
0
Sold as
EACH
