Description

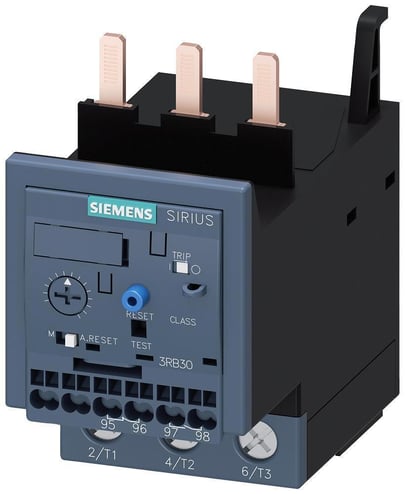

Siemens SIRIUS Overload Relay, Class 20E Electronic Solid State, 12.5 to 50 A, 7.5 to 22 kW Power, 50/60 Hz Frequency, 1NC-1NO Contact Form, 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC Contact, 3 Pole, Contactor Mounting, Screw/Spring Loaded Terminal, IP00/IP20 Enclosure, -25 to 60 deg C, 99 mm H x 55 mm W x 104 mm D Dimensions
Features
- Manual/automatic reset
Specifications
GTIN: 00887621914639
UNSPSC: 39122330
Alternative Part Number: 13125218
Country of Origin: Czechia
| Number of Poles | 3 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Enclosure Type | IP00/IP20 |
| BABA Compliant | No |
| Terminal Type | Screw/Spring Loaded |
| Contact Rating | 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC |
| Temperature Rating | -25 to 60 deg C |
| Type | Class 20E Electronic Solid State |
| Dimensions | 99 mm H x 55 mm W x 104 mm D |
| Mounting Type | Contactor |
| Amperage Rating | 12.5 to 50 A |
| Contact Form | 1NC-1NO |
| Power Rating | 7.5 to 22 kW |
| Sold as | EACH |
