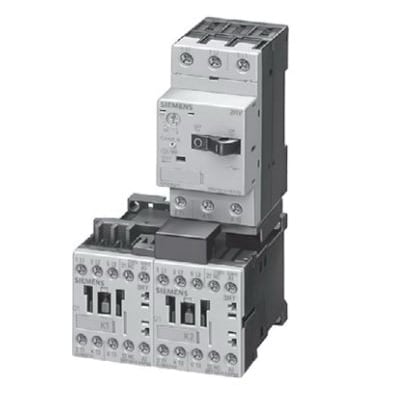

SIRIUS 3RA12 10-0BA15-0BB4 Reversing Combination Load Feeder Starter, 120 VAC, 24 VDC V Coil, SPDT Action, 3 Poles, IP20 Enclosure
SIRIUS 3RA12 10-0BA15-0BB4 Reversing Combination Load Feeder Starter, 120 VAC, 24 VDC V Coil, SPDT Action, 3 Poles, IP20 Enclosure
MPN 3RA12 10-0BA15-0BB4
ASPN SIE3RA12 10-0BA15-0BB4
UPC 754554686240
Description
Features
- Standard unit without auxiliary contacts
- The permissible ambient temperature is 60 deg C with butt mounting and without derating
- They are intended for use in enclosed rooms in which no severe conditions (such as dust, caustic vapors, hazardous gases) prevail
- Suitable enclosures must be provided for installation in dusty and damp locations
- 3RA1 combination starters are climate-proof
- Class 10 overload trip characteristics
- Motor starter protector and contactor are linked electrically and mechanically by means of a link module and mounted on a Fastbus shoe
- S00 size
- For 60 mm fast busbar systems
Specifications
UNSPSC: 39121521
Country of Origin: Germany
| Number of Poles | 3 |
|---|---|
| Frequency Rating | 60 Hz |
| Enclosure Type | IP20 |
| Operating Cycles | 10000000 Cycles |
| BABA Compliant | No |
| Action | SPDT |
| Auxiliary Contact Rating | 1NO/1NC |
| Type | Reversing Combination |
| Operating Temperature | -20 to 70 deg C |
| Voltage Rating | 400 VAC |
| Dimensions | 159 mm H x 90 mm W x 75 mm D |
| Coil Voltage | 120 VAC, 24 VDC |
| Series | 3RA1 |
| Connection Type | Thread |
| Wattage | 0.06 kW |
| Amperage Rating | 0.14 to 0.2 A |
| Sold as | 1/PK |
