Description

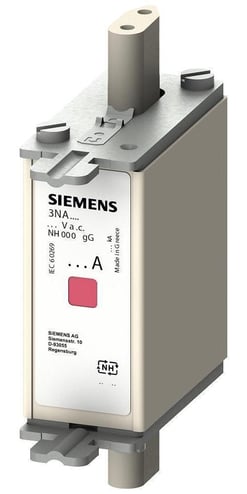

Sentron Low Voltage Fuse Link, HRC Design, 690 VAC, 35 A, Rated Breaking Capacity: 120 kA, -20 to 50 deg C Temperature Rating, Ceramic Material, 77.8 mm L x 52.5 mm W x 21 mm D Dimensions
LV HRC fuse systems (NH type) are used for installation systems in non-residential, commercial and industrial buildings as well as in switchboard assemblies of power utilities. They therefore protect essential building parts and systems. LV HRC fuse systems (NH type) are fuse systems designed for operation by experts. There are no constructional requirements for non-interchangeability of rated current and touch protection. The components and auxiliary equipment are designed in such a way as to ensure the safe replacement of LV HRC fuse systems or isolation of systems.
Features
- Fuse links with combination alarm signal the tripping of a fuse by a clear color change from red to white, enables fast identification and replacement of the tripped fuselinks
- Insulated grip lugs made of metal are integrated in the top and bottom covers of the fuse link in molded plastic and provide greater safety during replacement
- Standard series with front indicator, the front-mounted red indicator signals the tripping of a fuse
- LV HRC fuse links are always equipped with silver plated contact pins, ensures the long term operational safety of the plant, non-corroding and have less contact resistance
- Class gG, Size NH000
- Non-insulated grip lugs
Specifications
GTIN: 00754554881409
UNSPSC: 39121626
Country of Origin: Germany
| Voltage Rating | 690 VAC |
|---|---|
| Temperature Rating | -20 to 50 deg C |
| BABA Compliant | No |
| Amperage Rating | 35 A |
| Material | Ceramic |
| Rated Breaking Capacity | 120 kA |
| Width | 3.3 in |
| Type | HRC Design |
| Dimensions | 77.8 mm L x 52.5 mm W x 21 mm D |
| Sold as | EACH |
