Description

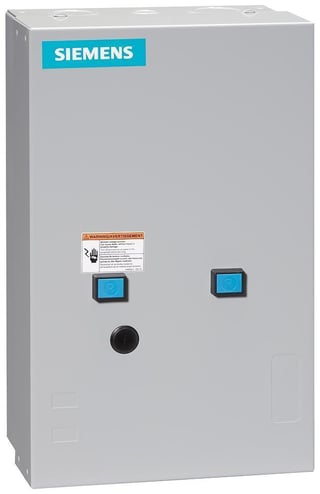

Siemens Motor Starter, Heavy Duty 2-Speed 2-Winding, 600 VAC, 27 A, 60 Hz Frequency, 8.6 W Wattage, 7-1/2 hp at 200/208/220/230 VAC Motor, 110/120/220/240 VAC Coil, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Screw Terminal Connection, Solid-State Overload Relay, 5.5 to 22 A Low Speed, 10 to 40 A High Speed Full Load, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 12 in W x 8 in D x 20 in H Dimensions
Features
- Constant or variable torque
- NEMA controller size 1
Specifications
GTIN: 00783087992528
UNSPSC: 39121521
Alternative Part Number: 10938680
Country of Origin: United States of America (the)
| Frequency Rating | 60 Hz |
|---|---|
| Voltage Rating | 600 VAC |
| Phase | 3 |
| BABA Compliant | No |
| Operating Cycles | 10000000 Cycles |
| Amperage Rating | 27 A |
| Reset Type | Automatic/Manual/Remote |
| Enclosure Type | NEMA 1 |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Wattage | 8.6 W |
| Operating Temperature | -4 to 104 deg F |
| Overload Relay | Solid-State |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Full Load Current | 5.5 to 22 A Low Speed, 10 to 40 A High Speed |
| Dimensions | 12 in W x 8 in D x 20 in H |
| Motor Power | 7-1/2 hp at 200/208/220/230 VAC |
| Coil Voltage | 110/120/220/240 VAC |
| Connection Type | Screw Terminal |
| Type | Heavy Duty 2-Speed 2-Winding |
| Sold as | EACH |
