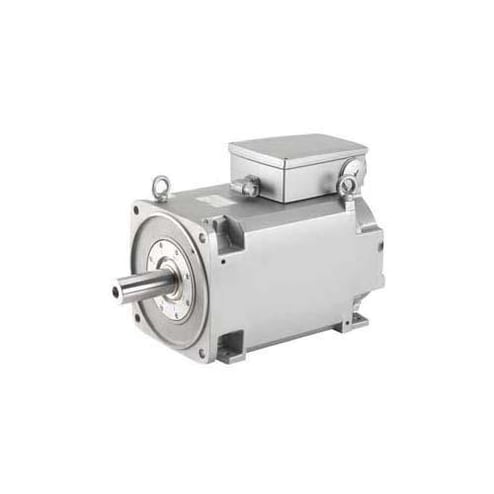

Siemens SIMOTICS M 1PH81662DL232BA1 Compact Squirrel-Cage Water Cooling Synchronous Motor, IP65 Enclosure, 380420450 VAC, 167 Hz, 3 ph Phase, 250028003000 rpm Speed, IM B35 (IM V15, (IM V35) Mount

Siemens SIMOTICS M Synchronous Motor, Compact Squirrel-Cage Water Cooling, Series: 1PH8, Synchronous Permanent Magnet AC Motors Special Features, 380/420/450 VAC, 169/177/188 A, 167 Hz, 3 ph, 2500/2800/3000 rpm, IP65 Enclosure, 160 mm H Shaft, 350 N-m Torque, IM B35 (IM V15, (IM V35) Mount, 104 deg F, Insulation Class: Class H, 25.93 in L x 12.36 in W x 16.36 in H

SIMOTICS M-1PH8 motors have been especially designed for use as main drives in production machines and machine tools. These motors are available as asynchronous and synchronous versions. Based on a flexible modular kit system, the suitable SIMOTICS M-1PH8 motor can be found for nearly all drive tasks. For applications where - in addition to the higher drive power - the primary focus is on precise, smooth running characteristics and precise controllability of the axes. Further, you can operate them together with SINAMICS G120 converters which, when compared to standard main motors, extends the applications that they can realize as a result of the wider speed range. This allows them to address new, more compact machine concepts.
