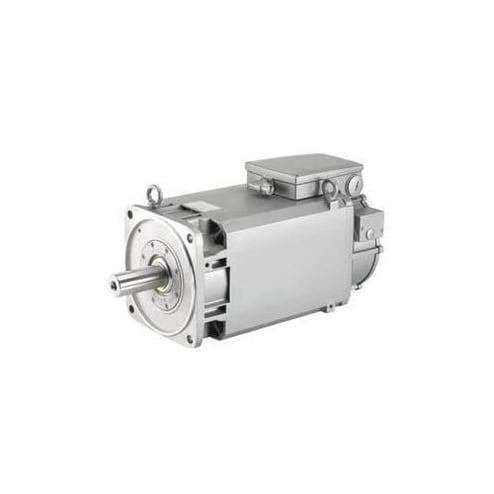

Siemens SIMOTICS M 1PH81371DF020CH1 Compact Forced Ventilated Induction Motor With High Power Density, IP55 Enclosure, 29-1/2 hp, 33-1/2 hp, 37-1/2 hp, 40.2 hp, 400/480 VAC, 51.3/59.6/67.9/74.6 Hz, 3 Phase, 1500/1750/2000/2200 rpm Speed


Description

Siemens SIMOTICS M Induction Motor, Compact Forced Ventilated, Series: 1PH8, Crane Motor Application, Asynchronous, Main Spindle Drive Motor, Squirrel Cage Rotor Special Features, 29-1/2 hp, 33-1/2 hp, 37-1/2 hp, 40.2 hp, 400/480 VAC, 53/55/56 A, 51.3/59.6/67.9/74.6 Hz Frequency, 3 ph, 1500/1750/2000/2200 rpm Speed, IP55 Enclosure, 48 mm Dia x 132 mm H Shaft, 130/134/136/140 N-m Torque, IM B5/IM V1/IM V3 Mounting, 104 deg F, Insulation Class: Class H, 26.73 in L x 10.24 in W x 12.5 in H Dimensions

The simotics M-1PH8 Series is the latest motor generation for universal use with motion control applications. The wide power range is aimed at use as a central machine drive (as what is known as a "main motor") for various applications. The motors are available as an asynchronous variant as well as a compact synchronous variant with either forced ventilation or water cooling, based on a flexible building block principle. The flexible configuration such as storage or electrical connection technology allows you to adapt the motors to the requirements of almost any industrial application.

Features

  • With 22-bit IC22DQ incremental encoder with commutation position, DRIVE-CLiQ interface
  • With plain shaft extension, without key balancing
  • Standard with location bearing, S/A vibration severity grade according to Siemens/EN 60034-14, R shaft and flange accuracy grade
  • Top power connector, DE cable entry, left signal connection by looking at de
  • Low space requirements thanks to high power density
  • Performance capability thanks to wide rotational speed setting ranges
  • High degree of structural flexibility due to the choice of asynchronous or synchronous design, forced ventilation or water cooling, mechanical designs
  • Minimized maintenance costs thanks to high bearing service lives
  • Precise motion control thanks to high rotational accuracy, even at the lowest speeds
  • Maximum thermal utilization over the complete speed range
  • Quiet operation as a result of low sound pressure level
  • Optimized for the SINAMICS S120 drive system
  • 29-1/2 hp, 140 N-m, 56 A at 400 VAC smart/basic line module
  • 33-1/2 hp, 136 N-m, 56 A at 400 VAC active line module
  • 37-1/2 hp, 134 N-m, 55 A at 480 VAC smart/basic line module
  • 40.2 hp, 130 N-m, 53 A at 480 VAC active line module
  • Without holding brake

Specifications

GTIN: 00804766544040

UNSPSC: 26101114

Alternative Part Number: 14191639

Amperage Rating
53/55/56 A
Application Type
Crane Motor
Dimensions
26.73 in L x 10.24 in W x 12.5 in H
Enclosure Type
IP55
Frequency Rating
51.3/59.6/67.9/74.6 Hz
Horsepower
29-1/2 hp, 33-1/2 hp, 37-1/2 hp, 40.2 hp
Insulation Class
Class H
Mounting Type
IM B5/IM V1/IM V3
Phase
3
Series
1PH8
Shaft Size
48 mm Dia x 132 mm H
Special Features
Asynchronous, Main Spindle Drive Motor, Squirrel Cage Rotor
Speed
1500/1750/2000/2200 rpm
Temperature Rating
104 deg F
Torque Rating
130/134/136/140 N-m
Type
Compact Forced Ventilated
Voltage Rating
400/480 VAC
Sold as
EACH
