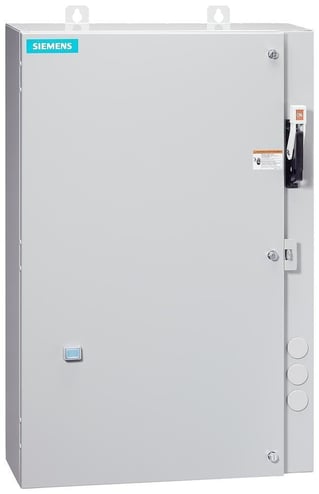

Siemens 17HUG92WC15 SZ 3 Class 17 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing Combination Starter WIth 100 A, 600 V Fusible Disconnect Switch, 190 to 220 VAC, 220 to 240 VAC, 380 to 440 VAC, 440 to 480 VAC V Coil, 3 Poles
Siemens 17HUG92WC15 SZ 3 Class 17 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing Combination Starter WIth 100 A, 600 V Fusible Disconnect Switch, 190 to 220 VAC, 220 to 240 VAC, 380 to 440 VAC, 440 to 480 VAC V Coil, 3 Poles
MPN 17HUG92WC15
ASPN SIE17HUG92WC15
UPC 662643814774
Description
Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 50 hp at 460/480 VAC, 50 hp at 575/600 VAC
- Box lug line side/load side outgoing feeder connection
- 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage
Specifications
GTIN: 00662643814774
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Number of Poles | 3 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Operating Cycles | 5000000 Cycles |
| BABA Compliant | No |
| Setting | 25 to 100 A |
| Voltage Rating | 575/600 VAC |
| Type | SZ 3 Class 17 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing |
| Overload Relay | Solid-State |
| Material | 304 Stainless Steel |
| Reset Type | Automatic/Manual/Remote |
| Enclosure Type | NEMA 4/4X |
| Dimensions | 24 in H x 20 in W x 8 in D |
| Motor Power | 50 hp |
| Coil Voltage | 190 to 220 VAC, 220 to 240 VAC, 380 to 440 VAC, 440 to 480 VAC |
| Operating Temperature | -4 to 104 deg F |
| Connection Type | Box Lug |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Width | 4.1 in |
| Sold as | EACH |
