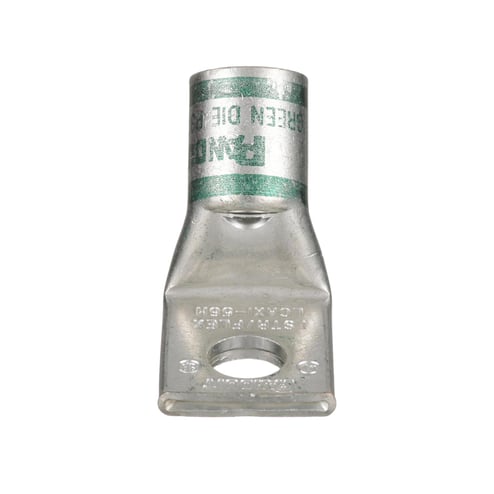

Panduit® Pan-Lug™ LCAX1-56H-X LCAX 1-Hole Compression Connector Lug With Inspection Window, 1 AWG Flexible Copper Conductor, Die Code: P37, 42.491 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCAX1-56H-X LCAX 1-Hole Compression Connector Lug With Inspection Window, 1 AWG Flexible Copper Conductor, Die Code: P37, 42.491 in Stud, Tin Plated Copper
MPN LCAX1-56H-X
ASPN PANDLCAX156HX
UPC 74983435135
Description
Features
- Color coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- 1 AWG class B, C, G, H, I, K, M and DLO conductor
Specifications
GTIN: 00074983435135
UNSPSC: 39121405
Country of Origin: Mexico
| Type | 1-Hole |
|---|---|
| Color | Green |
| Tongue Type | 45 deg |
| Conductor Type | Flexible Copper |
| Voltage Rating | 35 kV |
| Stud Size | 42.491 in |
| Material | Tin Plated Copper |
| Temperature Rating | 90 deg C |
| BABA Compliant | No |
| Die Code | P37 |
| Series | LCAX |
| Tongue Size | 0.76 in W x 0.12 in THK |
| Conductor Size | 1 AWG |
| Specifications | 3/4 in L Wire Strip |
| Barrel Type | Standard |
| Overall Length | 1.49 in |
| Barrel Size | 0.39 in ID x 0.52 in OD x 0.66 in L |
| Mounting Hole Size | 42.828 in |
