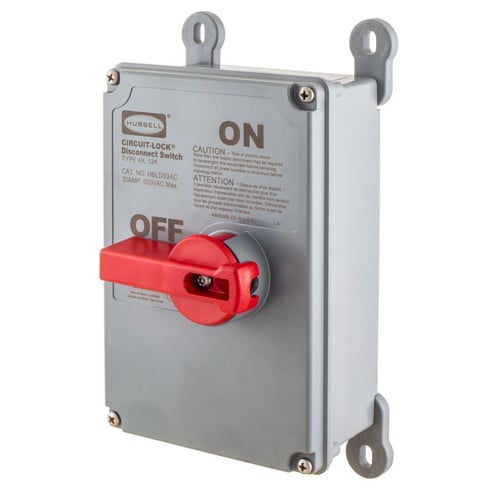

Wiring Device-Kellems Circuit-Lock HBLDS3NK Industrial Grade Labelless Non-Metallic Standard Unfused Disconnect Switch, 600 VAC, 30 A, 15 hp, 2-Position Contact, 3 Poles


Description

Wiring Device-Kellems Circuit-Lock Disconnect Switch, Industrial Grade Labelless Non-Metallic Standard Unfused, 600 VAC, 30 A, 15 hp, 3 ph, 60 Hz Frequency, 3 Pole, 65 kA Short Circuit, 2-Position Contact Form, Lever Operated Actuator, NEMA 4X/12/IP69K Enclosure, Foot Mounting, Screw Terminal, -40 to 67 deg C, 8.5 in L x 6 in W x 4.12 in H Dimensions, Polybutylene Terephthalate/Composite, Gray

Hubbell Circuit-Lock non-metallic disconnects are frequently used in harsh environments. Frequent wash down, hot and high pressure water, caustic cleaning agents and UV light are common place. Hubbell new laser marked covers ensure that ratings are now permanently marked.

Features

  • Permanent labelless marking
  • Molded in corrosion and impact resistant material that is UV stabilized
  • Highly visible red handle which meets OSHA lockout/tagout capabilities
  • Cover cannot be removed when switch is in the "ON" position
  • Accepts up to 2 auxiliary contact
  • Without knockouts

Specifications

Country of Origin: Poland

Terminal Type
Screw
Number of Poles
3
Frequency Rating
60 Hz
Voltage Rating
600 VAC
Phase
3
Amperage Rating
30 A
BABA Compliant
No
Color
Gray
Horsepower
15 hp
Contact Form
2-Position
Short Circuit Current Rating
65 kA
Actuator Type
Lever Operated
Dimensions
8.5 in L x 6 in W x 4.12 in H
Material
Polybutylene Terephthalate/Composite
Temperature Rating
-40 to 67 deg C
Type
Industrial Grade Labelless Non-Metallic Standard Unfused
Enclosure Type
NEMA 4X/12/IP69K
Mounting Type
Feet
