nVent HOFFMAN RHJ1816HWPL2LG HJ Series Enclosure, 19.32 in L x 17.31 in W x 11.07 in D, NEMA 4XIP66 NEMA Rating, Fiberglass


Description

nVent HOFFMAN Enclosure, Series: HJ Series, 19.32 in Length, 17.31 in Width, 11.07 in Depth, NEMA 4X/IP66, Raised Hinged Overlapping Cover, 16.75 x 14.88 in Panel, Lock: Padlock Latch, Wall Mount, Fiberglass, Light Gray

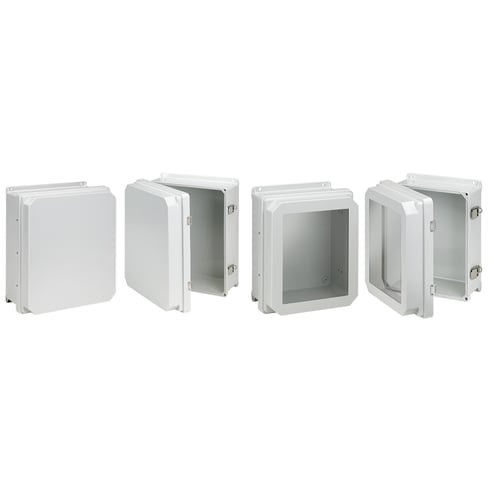

Enclosures feature a raised, hinged, overlapping cover design that ensures a more-secure seal and offers increased internal space for mounting components. Available with solid and window covers. Latches provide easy access and security.

Features

  • Compression molded fiberglass construction
  • Overlapping raised solid and window covers
  • Windows are clear polycarbonate
  • Cover fastens with padlockable 316 stainless steel latches
  • Type 304 stainless steel piano hinges
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact
  • Material is halogen-free

Specifications

GTIN: 00783510158675

UNSPSC: 39121324

Country of Origin: Belgium

Mounting Type
Wall
BABA Compliant
No
Material
Fiberglass
Panel Size
16.75 x 14.88 in
Width
17.31 in
Color
Light Gray
Lock
Padlock Latch
Series
HJ Series
Weight
97 lbs
Depth
11.07 in
NEMA Rating
NEMA 4X/IP66
Length
19.32 in
Cover Type
Raised Hinged Overlapping
Volume
0.1 CF
