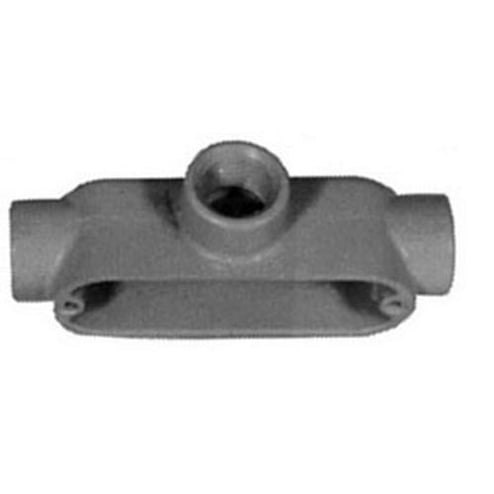

Appleton® UNILETS™ T75A Type T Conduit Outlet Body, 3/4 in Hub, Form 85 Form, 7 cu-in Capacity, Sand Cast Aluminum, Epoxy Powder Coated


Description

Appleton® UNILETS™ Conduit Outlet Body, Type T, 3/4 in Hub, 3 Hubs, 7 cu-in Capacity, Form 85 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Sand Cast Aluminum, Epoxy Powder Coated, 5.63 in L x 1.63 in H Dimensions

Appleton® Form 85™ UNILETS™ Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.

Features

  • Roomy interiors more wiring space
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
  • Lightweight aluminum facilitates shipping, handling and installing
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Internal volume and maximum wire capacity clearly marked on castings
  • Threaded style is raintight when used with casketed covers

Specifications

GTIN: 00781381687058

UNSPSC: 39131708

Country of Origin: India

Mounting Type
Surface
Hub Size
3/4 in
BABA Compliant
No
Finish
Epoxy Powder Coated
Material
Sand Cast Aluminum
Number of Hubs
3
Dimensions
5.63 in L x 1.63 in H
Type
Type T
Enclosure
NEMA FB-1
Form
Form 85
Connection Type
Tapered FNPT
Capacity
7 cu-in
Sold as
EACH
