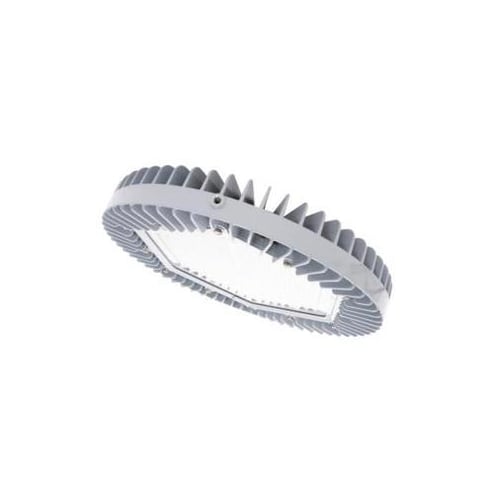

Vigilant® HEU7MC2CNNWNGN Medium Beam High Bay Fixture With Integrated Wiring Box, LED Lamp, 129 W Fixture, 100 to 277 VAC, 120 to 250 VDC, Gray Housing


Description

Vigilant® High Bay Fixture, Medium Beam, 100 to 277 VAC, 120 to 250 VDC, 129 W Fixture, LED Lamp, 151 Lumens/W, 10 years Average Life, Cool White Light, 5000 K Color, 80 CRI, Clear Glass Lens, 19500 Lumens, 10 ft 18 AWG STOOW Cord, NEMA 4X/IP66/IP67, Threaded/Pendant Mount, Copper-Free Aluminum Housing, Gray Housing, 16 in Dia

Combining ultra high efficiency and reliability you can count on, Dialight award winning Vigilant® high bay delivers outstanding light efficacy with up to 75% lower energy consumption and cost than conventional lighting. Ideal for heavy industry, manufacturing, power generation and cold storage, the Vigilant® high bay's durable, corrosion-resistant housing, high CRI LEDs and purpose built power supply are all backed by Dialight 10 years warranty.

Features

  • Superior dual coat finish with sealed polyester topcoat
  • -40 to 149 deg F wide operating temperature range
  • Without plug

Specifications

GTIN: 05056020972679

UNSPSC: 39111544

Country of Origin: Mexico

BABA Compliant
No
Housing Finish
Gray
Color Temperature
5000 K
Enclosure Type
NEMA 4X/IP66/IP67
Light Color
Cool White
Fixture Wattage
129 W
Housing Material
Copper-Free Aluminum
Mounting Type
Threaded/Pendant
Color Rendering Index (CRI)
80
Lens Type
Clear Glass
Lumens
19500 Lumens
Voltage Rating
100 to 277 VAC/120 to 250 VDC
Type
Medium Beam
Cord Type
10 ft 18 AWG STOOW
Dimensions
16 in Dia
Average Life
10 years
Lamp Type
LED
Light Output
151 Lumens/W
