Prysmian

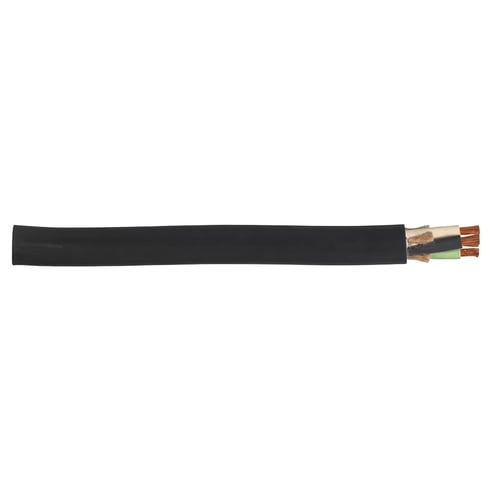

Carol Carolprene 02765.15T.01 Portable Cord, Spool Packaging, 600 VAC, (3) 16 AWG SOOWFully Annealed Bare Stranded Copper Conductor, 250 ft L


Description

Carol Carolprene Cord, Portable, Spool Packaging, 600 VAC, 13 A, 3 Conductors, SOOW/Fully Annealed Bare Stranded Copper Conductor, 16 AWG Conductor, 0.39 in OD, 250 ft Length, 26/30 Strands, EPDM Insulation, Carolprene Rubber Jacket, Black Jacket, 90 deg C

General Cable Carol brand is the most recognized name in flexible cord for temporary power whether its plastic, rubber or specialty constructions, in applications requiring 600 V or less. The extensive line includes portable cord, cordsets, portable power cable and premium-grade cable for commercial and industrial applications, including for use on constructions sites, in plants and factories or entertainment venues.

Features

  • Good tensile strength, elongation and aging characteristics
  • Premium grade, color coded 90 deg C EPDM insulation
  • TRU-Mark sequential footage marking
  • Excellent resist to abrasion, oil, moisture, ozone, sunlight (UV), weather and water
  • Suitable for immersion in water if properly sealed and terminated

Specifications

Country of Origin: United States of America (the)

BABA Compliant
No
Amperage Rating
13 A
Temperature Rating
90 deg C
Voltage Rating
600 VAC
Type
Portable
Outside Diameter
0.39 in
Jacket Material
Carolprene® Rubber
Conductor Type
SOOW/Fully Annealed Bare Stranded Copper
Conductor Size
16 AWG
Length
250 ft
Jacket Color
Black
Number of Conductors
3
Strands
26/30
Packaging Type
Spool
Insulation Material
EPDM
Sold as
