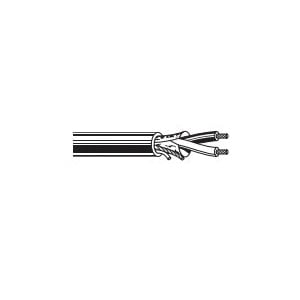

Belden 9341 010500 Type TC Non-Plenum Tray Cable With Outer Jacket Ripcord, 600 VAC, (2) 18 AWG Stranded Tinned Copper Conductor, 500 ft L
Belden 9341 010500 Type TC Non-Plenum Tray Cable With Outer Jacket Ripcord, 600 VAC, (2) 18 AWG Stranded Tinned Copper Conductor, 500 ft L
MPN 9341 010500
ASPN BELD9341010500
Description
Features
- High tensile strength, impact, heat, moisture, corrosion and crush resistance
- Superior low temperature properties and high insulation resistance
- Low dielectric loss, high dielectric strength, versatile and flexible
- Provides cost savings as conduit and ducts are not required for exposed-run cables
- Overall Beldfoil outer shield (100% coverage)
- 115.653 N maximum recommended pulling tension
- 69.85 mm minimum bend radius/minor axis
- 19.227 Ohm/km at 20 deg C nominal conductor DC resistance
- 19.277 Ohm/km at 20 deg C nominal outer shield DC resistance
- 141.083 pF/m nominal conductor to conductor capacitance
- 242.794 pF/m nominal conductor to other conductor and shield capacitance
- 18 AWG (19x30) stranded tinned copper drain wire
Specifications
UNSPSC: 26121629
| Jacket Material | PVC |
|---|---|
| Voltage Rating | 600 VAC |
| Conductor Size | 18 AWG |
| Jacket Color | Black |
| Number of Conductors | 2 |
| Resistance | 19.227 Ohm |
| Amperage Rating | 6 A |
| Temperature Rating | -30 to 90 deg C |
| BABA Compliant | No |
| Strands | 19/30 |
| Length | 500 ft |
| Insulation Material | PVC/Nylon |
| Outside Diameter | 6.96 mm |
| Type | Type TC Non-Plenum |
| Conductor Type | Stranded Tinned Copper |
| Sold as |
