Description

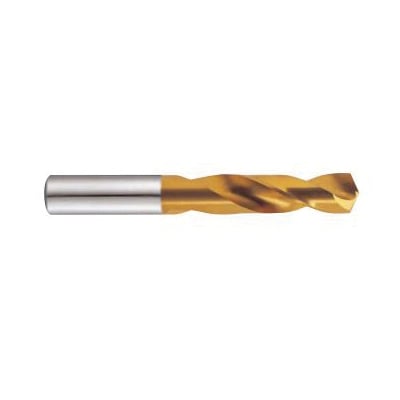

YG-1 Screw Machine Drill, Series: D4148, Imperial, #37 Drill - Wire, 0.104 in Drill - Decimal Inch, 1-13/16 in Overall Length, 13/16 in Cutting Depth, Right Spiral Flute, 13/16 in Flute Length, 13/128 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Alloyed/Non-Alloyed, Cast Steel, Gray Cast Iron, Graphite, Malleable Cast Iron and Steel
Features
- Right hand spiral, wider flute geometry
Specifications
UNSPSC: 23241606
Alternative Part Number: 91114975
| Drill Diameter Measurement System | Imperial |
|---|---|
| Cutting Direction | Right Hand |
| Width | 2.5 in |
| Shank Type | Straight |
| Cutting Edge Material | M42 HSS-Co 8 |
| Point Type | Split |
| Point Angle | 135 deg |
| Material | M42 HSS-Co 8 |
| Finish | TiN Coated |
| Flute Type | Right Spiral |
| BABA Compliant | No |
| Flute Length | 13/16 in |
| Cutting Depth | 13/16 in |
| Series | D4148 |
| Shank Size | 13/128 in |
| Applicable Materials | Alloyed/Non-Alloyed, Cast Steel, Gray Cast Iron, Graphite, Malleable Cast Iron and Steel |
| Weight | 42.8 lbs |
| Drill Size - Decimal Inch | 0.104 in |
| Overall Length | 1-13/16 in |
| Drill Size - Wire | #37 |
| Sold as | 10/PK |
