Description

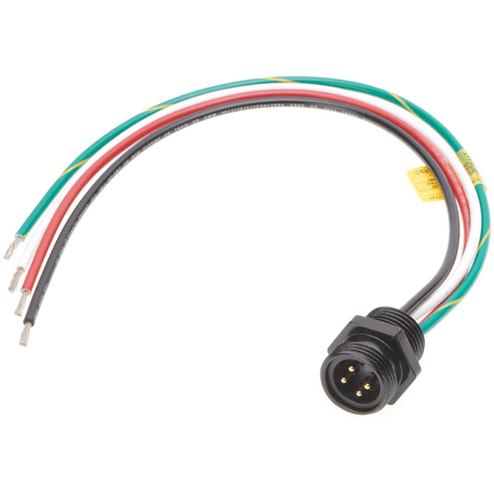

Woodhead® Brad® Quick-Change® Receptacle, A-Size, Series: 130066, 600 VAC/VDC, 10 A, NEMA 6P/IP68, Die Cast Zinc, Black, 12 in L
From the harsh chemical wash-down of food processing, to the high-temperatures of steel production or the caustic humidity of pulp/paper production, heavy duty power requirements demand rugged connector products. Quick-Change connectors are constructed to deliver years of uninterrupted performance in these demanding applications. They are available in 2 to 4-pole configurations, with ratings up to 30.0A. Molded in bright yellow, Quick-Change connectors provide enhanced visibility for safety. A positive key alignment reduces the possibility of mis-mating. An IP67 seal keeps out water and contaminants.
Features
- Prevents the entry of water during temporary submersion at a limited depth
- Ideal for motors and other high-amperage devices
- Meets agency approval for safety and reliability
- No hardware corrosion
- High visibility of electrical component for safety
- 4-pole
- Male straight, 1/2-14 NPT mounting thread
Specifications
UNSPSC: 39121406
| Type | A-Size |
|---|---|
| Color | Black |
| Voltage Rating | 600 VAC/VDC |
| Weight | 8 lbs |
| NEMA Rating | NEMA 6P/IP68 |
| Dimensions | 12 in L |
| Series | 130066 |
| Material | Die Cast Zinc |
| Amperage Rating | 10 A |
| Volume | 0 |
| BABA Compliant | No |
| Sold as |
