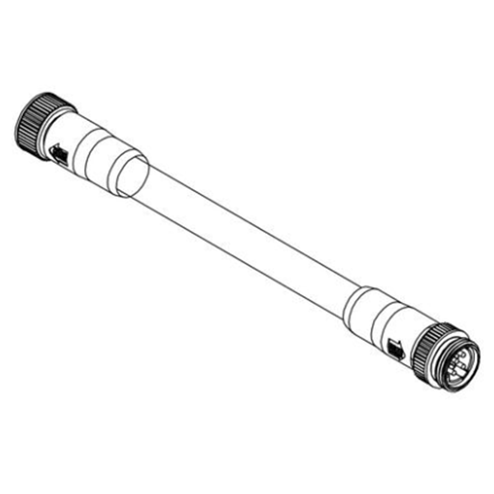

Molex 1300620284 4-Position Double Ended Straight Mini-Change Cable Assembly, 7/8-16 UN Female/Male Connector, 10 m L Cable, 4 Poles, ALT Key Keyway
Molex 1300620284 4-Position Double Ended Straight Mini-Change Cable Assembly, 7/8-16 UN Female/Male Connector, 10 m L Cable, 4 Poles, ALT Key Keyway
MPN 1300620284
ASPN WOOD114130K21M100
UPC 78172546649
Description
Specifications
UNSPSC: 26121652
| Cable Length | 10 m |
|---|---|
| Number of Poles | 4 |
| Cable Material | TPE |
| Keyway | ALT Key |
| Connector Size | 7/8-16 UN |
| Voltage Rating | 600 VAC/VDC |
| Weight | 6 lbs |
| Connector Material | Copper Alloy |
| Series | 130062 |
| Amperage Rating | 15 A |
| Connector Type | Female/Male |
| BABA Compliant | No |
| Cable Type | TC-ER |
| Type | 4-Position Double Ended Straight |
| Sold as |
