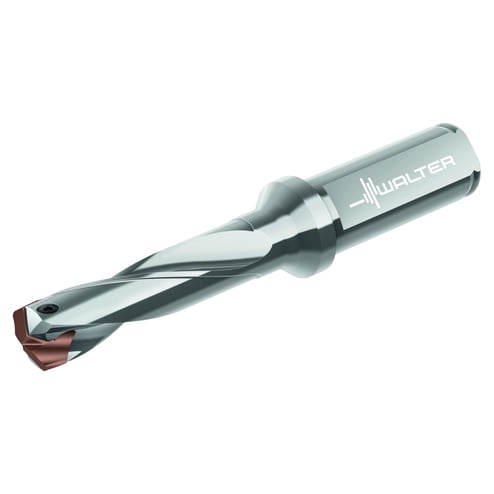

Walter 7508863 High Performance Imperial Replaceable Tip Drill, 1.102 to 1.141 in Drill, P600... -D28, .. Insert, 7.557 in OAL, 3xD Drill Depth by Dia Ratio, J Insert Seat, 1-14 in Dia Shank
Walter 7508863 High Performance Imperial Replaceable Tip Drill, 1.102 to 1.141 in Drill, P600... -D28, .. Insert, 7.557 in OAL, 3xD Drill Depth by Dia Ratio, J Insert Seat, 1-14 in Dia Shank
MPN 7508863
ASPN WLT7508863
UPC 0
Description
Specifications
UNSPSC: 23241600
Country of Origin: Germany
| BABA Compliant | No |
|---|---|
| Width | 0 in |
| Number of Flutes | 2 |
| Shank Length | 2.281 in |
| Insert Style | P600... -D28, .. |
| Maximum Drill Depth | 3.504 in |
| Point Angle | 140 deg |
| Overall Length | 7.557 in |
| Shank Diameter | 1-1/4 in |
| Weight | 25.1 lbs |
| Shank Type | Cylindrical/Parallel with Flat |
| Flute Length | 4.4094 in |
| Type | High Performance Imperial |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Seat Size | J |
| Drill Size | 1.102 to 1.141 in |
| Through Coolant (Yes/No) | Yes |
| Sold as |
