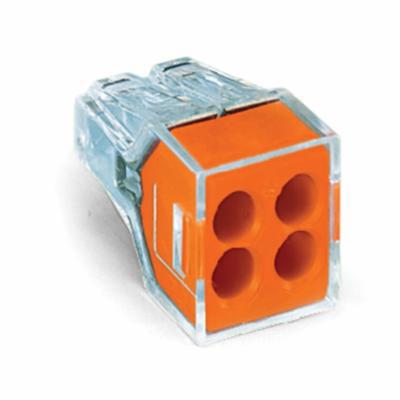

WAGO PUSH WIRE 773-104/VE00-2500 773 WALL-NUTS Push-In Wire Connector, 12 to 16 AWG, 12 to 18 AWG Side Entry Wire, Copper


Description

WAGO PUSH WIRE Connector, Push-In Wire, Series: 773 WALL-NUTS, Side Entry Wire, 12 to 16 AWG, 12 to 18 AWG Wire, 400 VAC, Specifications: 24 A, 60 deg C, Copper, Orange, 0.516 in H x 0.362 in W x 0.768 in D Dimensions

WAGO's 773 Series PUSH WIRE connectors for junction boxes now provide an immediate solution for use with solid conductors with cross-sections up 4 mmsq.. This new series, with its compact design, uses 30 % less space than the 273 Series. The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.

Features

  • 4 number of poles
  • 4 connection points
  • 0.47 in strip length
  • V2 Flammability class per UL94
  • Transparent housing
  • 12 to 16 AWG stranded/12 to 18 AWG solid connection

Specifications

Type
Push-In Wire
Wire Size
12 to 16 AWG/12 to 18 AWG
Color
Orange
Voltage Rating
400 VAC
Specifications
24 A
Wire Type
Side Entry
Dimensions
0.516 in H x 0.362 in W x 0.768 in D
Material
Copper
Temperature Rating
60 deg C
BABA Compliant
No
Series
773 WALL-NUTS®
