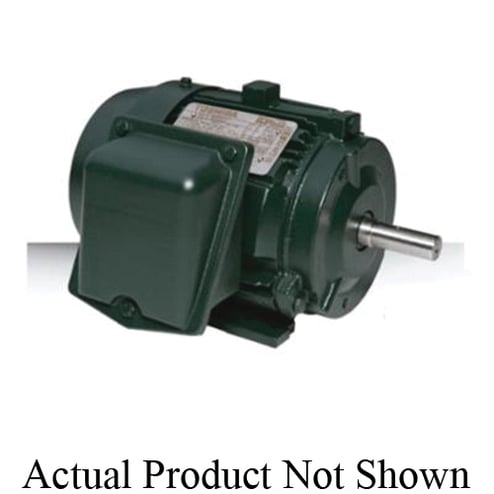

Toshiba EQP Global 0402SDSR41B-P SD Series Continuous-Duty Type TKKH AC Motor, Totally Enclosed Fan Cooled Enclosure, 40 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 324TS Frame, 3600 rpm Speed, Footed Mount

Toshiba EQP Global AC Motor, Continuous-Duty Type TKKH, Series: SD Series, General Purpose AC Motors, Compressor Motors, Fan & Blower Motors Application, 40 hp, 230/460 VAC, 94/47 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 324TS Frame, 1-7/8 in Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 59.3 ft-lb Torque, Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 60:1 Variable Torque Speed, 29.8 in L x 19 in H Dimensions

Toshiba's general purpose, totally enclosed fan cooled, NEMA Premium efficiency, EQP Global SD motor series is Toshiba's next-generation motor product line. This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba.
