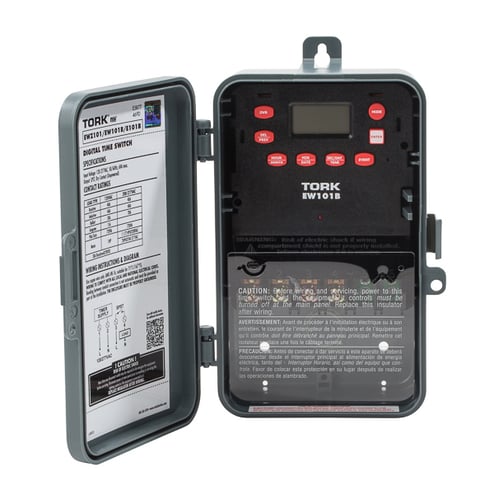

NSI Tork® EW101B Time Switch, 1 min to 24 hr Setting, 120 to 277 VAC, 1 hp, 1-1/2 hp, 2 hp, SPST Contact, 1 Pole
NSI Tork® EW101B Time Switch, 1 min to 24 hr Setting, 120 to 277 VAC, 1 hp, 1-1/2 hp, 2 hp, SPST Contact, 1 Pole
MPN EW101B
ASPN TORKEW101B
UPC 786261824318
Description
Features
- 20 On and Off set points for individual programs for each day of the week, minimum setting is 1 min
- Automatic adjustment (can be omitted)
- Automatic leap year compensation
- Until the next regularly scheduled On or Off, automatic operation then resume
- AM/PM clock format
- Super capacitor provides 7 days of real time backup
- 16 to 8 AWG terminal range
- 6 VA maximum power consumption
- Plastic indoor/outdoor enclosure
Specifications
GTIN: 00786261824318
UNSPSC: 39121523
Country of Origin: United States of America (the)
| Number of Poles | 1 |
|---|---|
| Voltage Rating | 120 to 277 VAC |
| Weight | 76 lbs |
| Width | 2.1 in |
| Enclosure Type | NEMA 3R |
| Dimensions | 5.062 in L x 3.062 in W x 8.312 in H |
| Mounting Type | Threaded |
| Operation Mode | 7 days |
| Series | EW Series |
| Time Setting | 1 min to 24 hr |
| Amperage Rating | 40 A |
| Number of Channels | 1 |
| Contact Form | SPST |
| Temperature Rating | -40 to 149 deg F |
| Horsepower | 1 hp, 1-1/2 hp, 2 hp |
| Display Type | Digital LED |
| BABA Compliant | No |
| Sold as | EACH |
