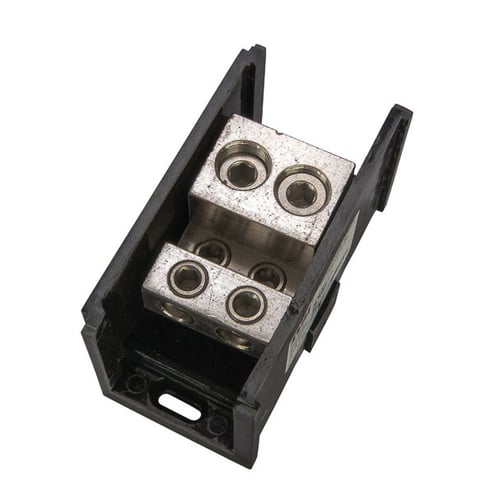

NSI Connector Bloks™ AL-R2-M4 Double Primary Power Distribution Block, 600 VAC, 760 A, 1 Poles, 4 AWG to 500 kcmil Wire, Aluminum
NSI Connector Bloks™ AL-R2-M4 Double Primary Power Distribution Block, 600 VAC, 760 A, 1 Poles, 4 AWG to 500 kcmil Wire, Aluminum
MPN AL-R2-M4
ASPN TORKALR2M4
UPC 662381165787
Description
Features
- 2 mounting holes
- Power distribution blocks are made of high strength, high conductivity material
- Mounted in a high strength glass filled polyester base
- Each block can stand alone or combine with other blocks to form a multi-block set
- 6 terminals
- Glass filled polyester base
- Large size
- (2) 4 AWG to 500 kcmil line, (4) 6 to 4/0 AWG load
Specifications
GTIN: 00662381165787
UNSPSC: 39121410
Alternative Part Number: 173N71
Country of Origin: United States of America (the)
| Type | Double Primary |
|---|---|
| Number of Poles | 1 |
| Color | Black |
| Voltage Rating | 600 VAC |
| Width | 2.5 in |
| Material | Aluminum |
| Amperage Rating | 760 A |
| BABA Compliant | No |
| Primary Connections/Pole | 2 |
| Secondary Connection/Pole | 4 |
| Dimensions | 5.5 in L x 2.9 in W x 3.2 in H |
| Weight | 34 lbs |
| Wire Size | 4 AWG to 500 kcmil |
| Sold as | EACH |
