Description

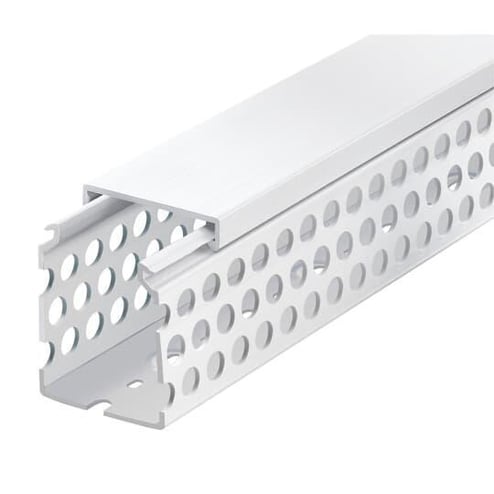

Ty-Duct, TYD3X2RPW6, Wiring Duct, 2-Point Contact, 3 in Width, 2 in Depth, 6 ft Length, Round Slot, 0.195 x 0.625 in Slot, DIN Rail/Hole Mounting, No Adhesive Backed, PVC, White
Features
- Multiple rows of holes retain wire at different heights and positions with or without the cover
- Features maximum number of wire holes
- Greater wall rigidity than open slot duct
- Non-slip cover does not slide easily and resists vibration
- Rounded edges keep hands and wires free of abrasion
- Base score line enables sidewall section to be removed
- Flush cover attaches flush with sidewall for finished look
- Constructed of flame retardant PVC
- Integrated mounting holes larger sizes include staggered holes for mounting flexibility
- Lead free construction
- Wiring duct with mounting holes
- -40 to 140 deg F temperature
- V-0 per UL94 flammability rated
- 2 in H x 3 in W nominal duct
- 2 Rows of holes
- Rounded edges protect hands and wires
- Cover attaches flush with sidewall for finished look
Specifications
GTIN: 00786210096964
UNSPSC: 39131712
Country of Origin: United States of America (the)
| Type | 2-Point Contact |
|---|---|
| Color | White |
| Adhesive Backed | No |
| Weight | 23 lbs |
| Width | 3 in |
| Depth | 2 in |
| Length | 6 ft |
| Slot Size | 0.195 x 0.625 in |
| Mounting Type | DIN Rail/Hole |
| Material | PVC |
| BABA Compliant | No |
| Slot Type | Round |
| Sold as | EACH |
