Description

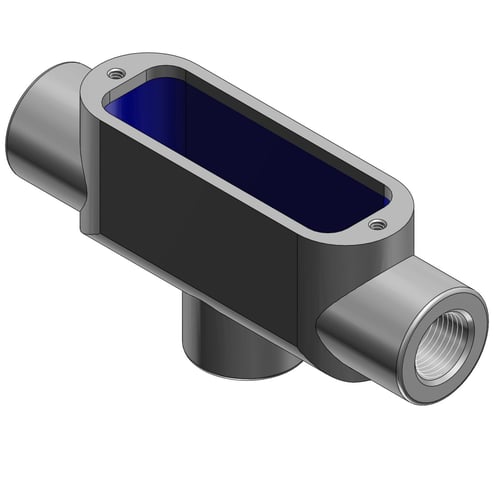

T&B® BlueKote® Conduit Body, Type TB, 1/2 in Hub, 3 Hubs, 6 cu-in, Form 8, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 5.57 in W x 1.62 in D x 1.78 in H
Features
- Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cu-in capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
Specifications
GTIN: 00786210166261
UNSPSC: 39131708
Alternative Part Number: 7TAD013270R0034, 10754060
Discontinued Manufacturer Part Number: 7TAD013270R0034
Country of Origin: China
| Color | Gray |
|---|---|
| BABA Compliant | No |
| Number of Hubs | 3 |
| Width | 2.1 in |
| Type | Type TB |
| Form | Form 8 |
| Dimensions | 5.57 in W x 1.62 in D x 1.78 in H |
| Hub Size | 1/2 in |
| Material | Iron |
| Finish | Epoxy Powder Coated/Zinc Plated |
| Capacity | 6 cu-in |
| Sold as | EACH |
