Description

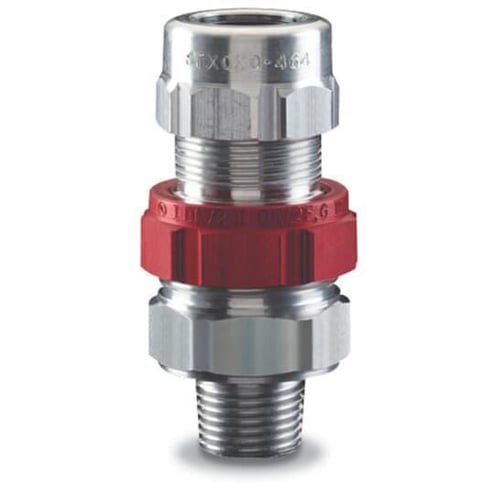

T&B® Fittings Star Teck® XP Teck Cable Connector, Series: STX, 1-1/2 in, Cable Openings: 1.35 to 1.625 in, JMC/TECK Cable, NPT, Aluminum, Red/Silver, 3.26 in Dia x 3.76 in L
Working with engineers from the Canadian petrochemical, oil and gas industries, Thomas & Betts then introduced the star TECK XP fitting. With an easy-to-fill, integral sealing chamber and a disconnectable design requiring minimal cable preparation, this fitting became the benchmark for ease of installation in hazardous environments. A line of liquid and putty sealants was also developed at the same time, eliminating the need for the cement sealants used up to this point.
Features
- Easy fill and assembly sealing chamber is easier to fill, requires less sealing compound saves time, material
- Flame path is optimally designed to allow for easy insertion into hub, quick turn lock unitizes assembly during installation
- Exclusive power grip provides grip high upon cable armor not on first convolution, so precise cable preparation is not critical
- Non-magnetic stainless steel power grip grounding ring assures 360 deg long term dependable grounding and also provides phenomenal tensile pull out resistance
- Easy to install in tight spaces low profile gland nut fits tight spaces
- Has grooves for hammer/screwdriver installation and flats for wrench gripping
- Durable and reusable with funnel entry for easy cable insertion
- Secure, tight fit tapered bushing, cone shaped to provide secure, tight fit while eliminating cupping of water in vertical installations
- Working with engineers from the Canadian petrochemical, oil and gas industries, Thomas & Betts then introduced the STAR TECK XP fitting.
- A line of liquid and putty sealants was also developed at the same time, eliminating the need for the cement sealants used up to this point.
Specifications
GTIN: 00786210904696
UNSPSC: 39121311
Discontinued Manufacturer Part Number: 7TBA051160R0016
Country of Origin: Canada
| Color | Red/Silver |
|---|---|
| Weight | 0.4 lbs |
| Cable Openings | 1.35 to 1.625 in |
| Trade Size | 1-1/2 in |
| Dimensions | 3.26 in Dia x 3.76 in L |
| Cable Type | JMC/TECK |
| Series | STX |
| Connection Type | NPT |
| Material | Aluminum |
| BABA Compliant | No |
| Sold as | EACH |
